Description
The SUPROS light series impresses with its multitude of possible applications, excellent LED technology and its harmonious design. With its very high luminous flux, the SUPROS product family is ideally suited to replace power-hungry, conventional lighting installations. The wide-area reflector included in the delivers can be replaced by reflectors with narrower beam angles which are optionally available. This can be done without the need for tools. With the factory-installed LED driver, all the luminaires in the series are suitable for direct connection to the 230V mains supply.
Technical data
Product name
SUPROS 78
BIG WHITE Page
382
Colour
white
Material
Aluminium
electrical power
12 W
Lumen/wattage
58.33 lm/W
Luminous Flux
700 lm
Colour temperature
3000 Kelvin
Half beam angle
60 °
CRI
96
Different light outlets
1
Dimmable
Yes
Dimming technology
trailing edge
Protection category
II
IP Code
IP 20
Assembly
Recessed
Assembly details
Ceiling
Shape
round

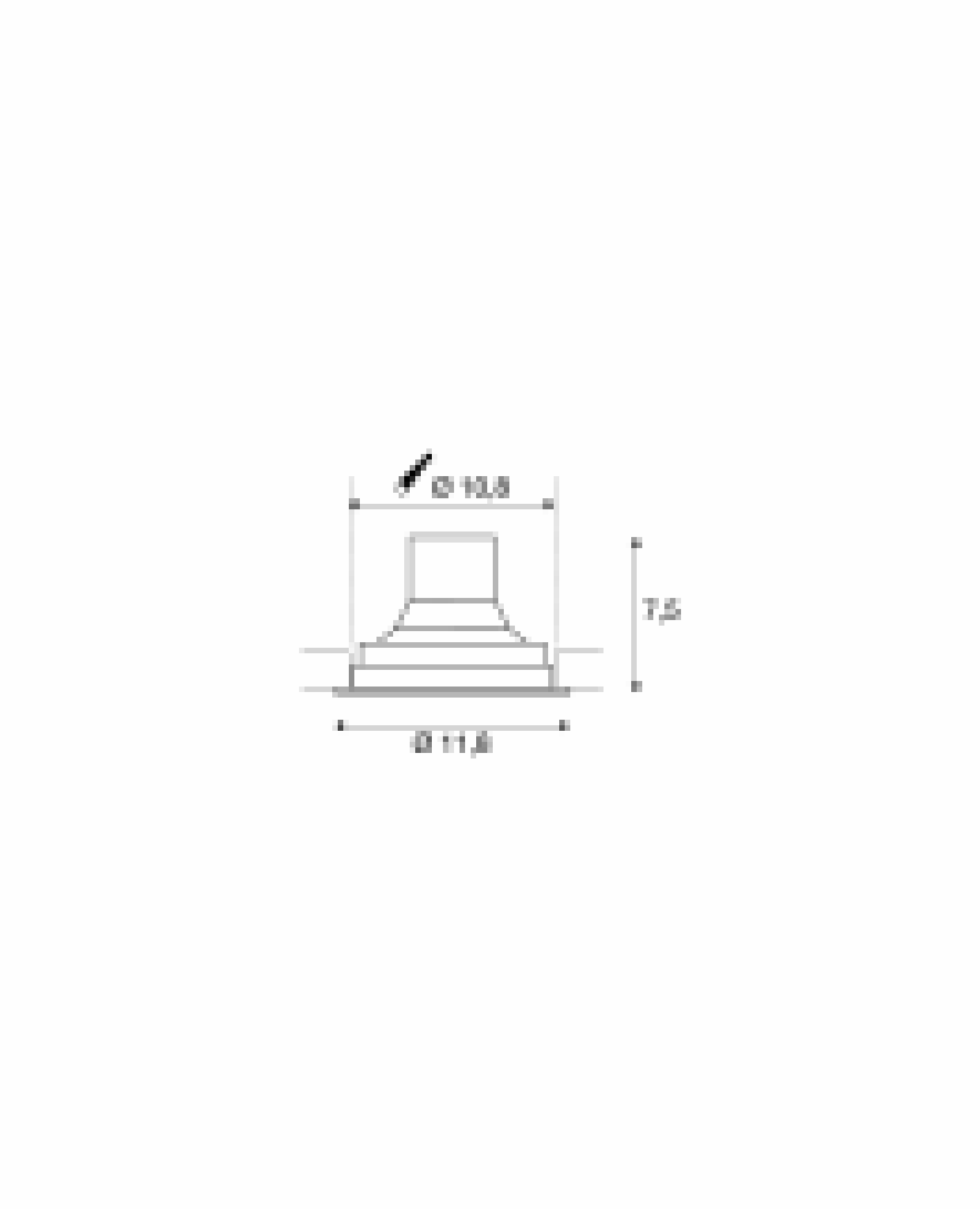

Height
7.5 cm
Diameter
11.8 cm
Shape of cut-out
round
Installation depth
8 cm
Rotating or tilting
cardanic
Vertical tilting range
30 °
Light outlet
direct
Luminous intensity distribution
rotational symmetric
Colour consistency
6 SDCM
Primary nominal voltage
220-240V ~50/60Hz
Secondary power / secondary voltage
250mA
Operational cycles
0
product.attribute.light_source_id_sp_collection
E
Net weight
0.43 kg
Rated value luminous efficacy
58.33 lm/W
Weighted consumption
12 kWh/1.000h
LXXBXX data
L70B50
Service life
25000 h
product.attribute.inrush_current_sp_collection
1
product.attribute.inrush_current_time_sp_collection
68
product.attribute.measured_variable_strobe_effects_svm_sp_fixture_data_new
0.07
FIND A DIMMER. GOOD COMBINATION.
Partially compatible dimmers
Compatible dimmers
- GIRA 245000
- SLV BLUETOOTH DIMMER MODUL
- Niko 310-0190X
- LK Fuga Variateur LED 180 Touch
- Busch Jäger (6523U)
- Merten MEG5134-0000
- Eltako EUD 61 NPN-UC
- Legrand PRO21 LED Dimmer 775659
