30000 h

IP 54

IK05

LIPA

Trailing edge phase dimmer

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Lighting family This product belongs to an SLV light family

CCT switch By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

To the technical details

LIPA CL

LED Outdoor surface-mounted ceiling light, IP54, white, 3000/4000K, More

30000 h

IP 54

IK05

LIPA

Item no.: 1001855

Sale only to registered specialist dealers. Log in now or become a dealer.

sold out

Description

SLV LIPA robust, water-protected surface-mounted solution. Round wall and ceiling light made from aluminium. Thanks to its IP54 protection class it is suitable for outdoor use. The opal illuminated area has an LED light source beneath it which can be switched between warm and cool white, and is enclosed by the painted housing. The luminaire comes in several colour versions and is connected directly to the 230V mains supply thanks to its built-in LED driver.

Trailing edge phase dimmer

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Lighting family This product belongs to an SLV light family

CCT switch By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

To the technical details

Technical data

Product name

LIPA

BIG WHITE Page

690

Colour

white

Material

Aluminium

electrical power

21 W

Lumen/wattage

76.19 lm/W

Luminous Flux

1600 lm

Half beam angle

120 °

Dimmable

Yes

Dimming technology

trailing edge

CCT Switch

Yes

Protection category

IP Code

IP 54

Assembly

Surface

Assembly details

Ceiling
Wall

Shape

round

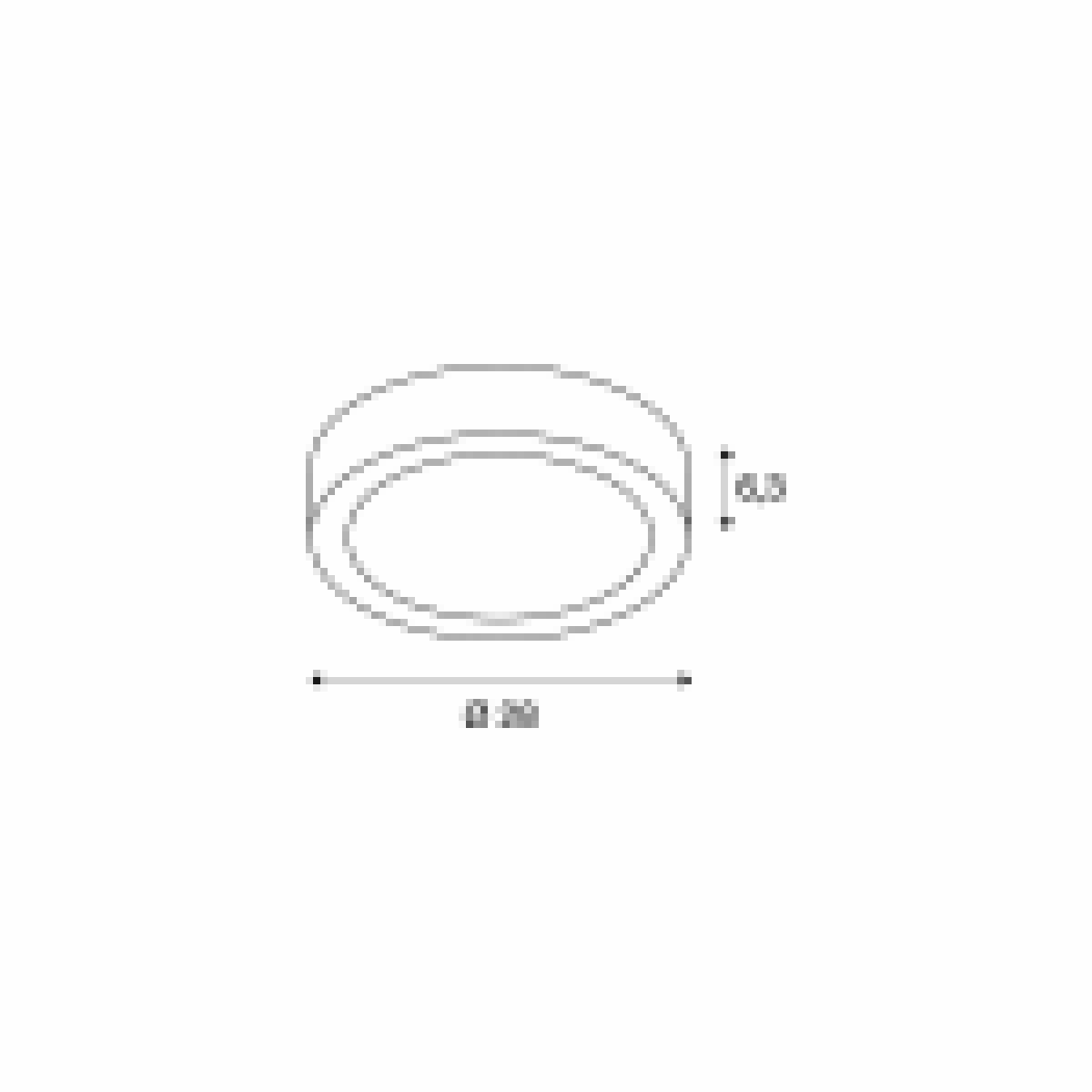

Height

6.3 cm

Diameter

28 cm

Shock resistance category

IK05

Shock resistance

0.7 joule

Primary nominal voltage

220-240V ~50/60Hz

Secondary power / secondary voltage

500mA

Operational cycles

Ambient temperature

-20 - 50 °C

product.attribute.light_source_id_sp_collection

Net weight

1.95 kg

Rated value luminous efficacy

76.19 lm/W

Weighted consumption

21 kWh/1.000h

LXXBXX data

L70B50

Service life

30000 h

product.attribute.inrush_current_sp_collection

product.attribute.inrush_current_time_sp_collection

product.attribute.measured_variable_strobe_effects_svm_sp_fixture_data_new

0.01

Manual (pdf)

Removal instructions (pdf)

Assembly drawings (pdf)

CE declaration (pdf)

Datasheet (pdf)

FIND A DIMMER. GOOD COMBINATION.

Compatible dimmers

SLV FUNK EINBAU-MULTIDIMMER
SLV BLUETOOTH DIMMER MODUL
Niko 310-0190X
LK Fuga Variateur LED 180 Touch
Busch Jäger (6523U)
Merten MEG5134-0000
Eltako EUD 61 NPN-UC
Legrand PRO21 LED Dimmer 775659

Please note the minimum load of the dimmers used.

Because of the many different products, it is not always easy to find the best combination. Our overview should help you to find the right dimmer.

We continuously update and extend the list, so that the latest combinations and any new products are always suggested to you.
