330 °

100000 h

IP20

IK02

TRACK PANEL

Horizontal rotation range This product can be swivelled horizontally.

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Lighting family This product belongs to an SLV light family

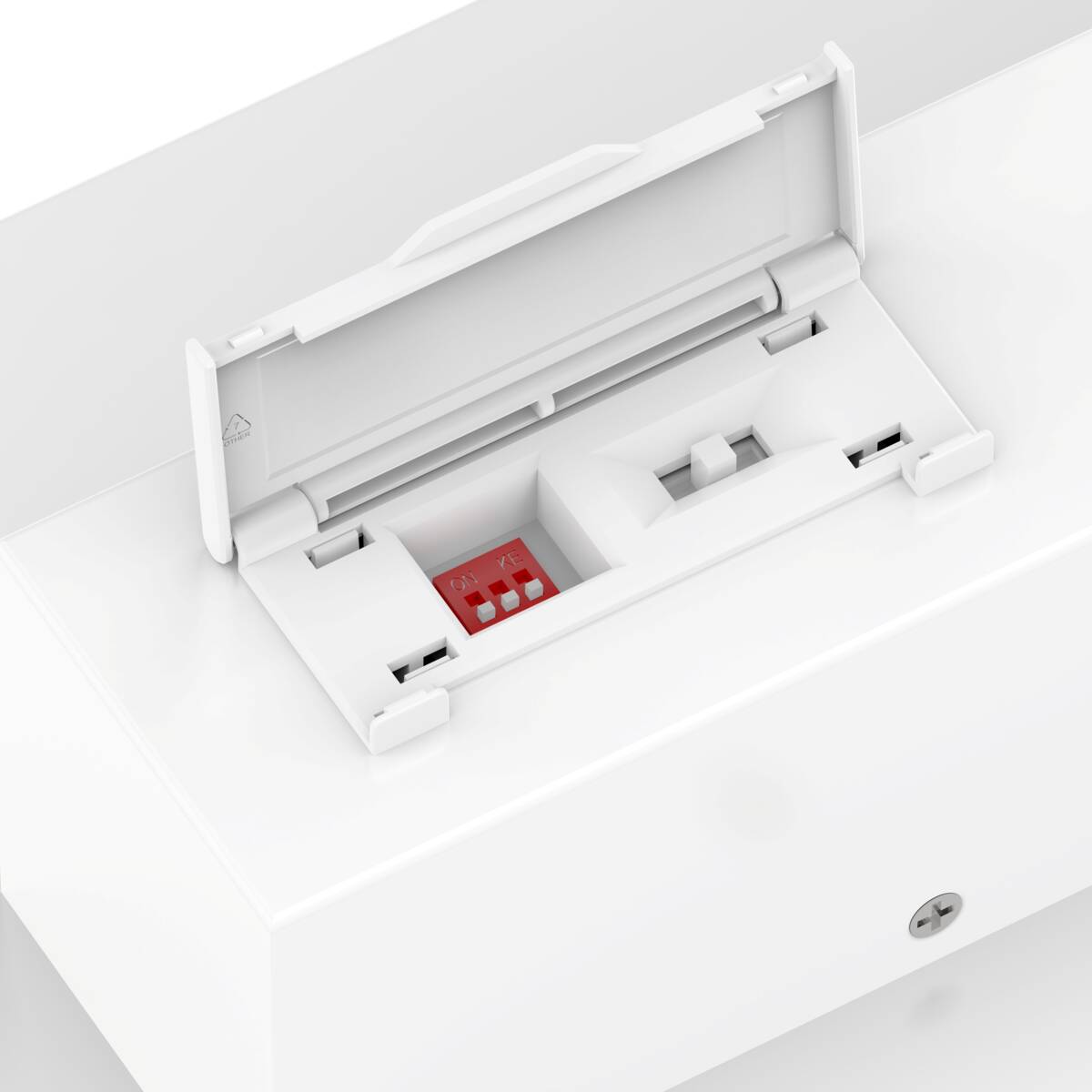

CCT switch By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

To the technical details

TRACK PANEL

3PH. 120 830/840 DWB ML WH, More

330 °

100000 h

IP20

IK02

TRACK PANEL

Item no.: 1011392

NEW

RRP £210.00

Price only for commercial customers, plus VAT.

250+ in Stock

Discover all SLVtec® products

Description

The TRACK PANEL is a wide-area LED solution for 3-phase tracks and is ideal for uniform, low-glare general lighting in retail, office and commercial areas. With multi-lumen and multi-colour function and optional DALI control, it enables flexible adaptation to project-specific requirements.

Horizontal rotation range This product can be swivelled horizontally.

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Lighting family This product belongs to an SLV light family

CCT switch By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

To the technical details

Technical data

Product name

TRACK PANEL 3PH. 120 830/840

Colour

white

Material

steel

electrical power

40 W

Luminous Flux

6600 - 12000 lm

Colour temperature

3000/4000 Kelvin

Beam angle

120 °

CRI

CCT switch

Yes

IP Code

IP20

Assembly

MOUNTING_TRACK

Assembly details

Ceiling

Shape

rectangular

Length

57.8 cm

Width

18.9 cm

Height

10.5 cm

Horizontal rotation range

330 °

Colour consistency

3 SDCM

Colour consistency

3 / 3 SDCM

Shock resistance category

IK02

Shock resistance

0.2 joule

Primary nominal voltage

220-240V ~50/60 Hz

Secondary power / secondary voltage

200/250/300/350mA

Ambient temperature

-20 - 40 °C

Net weight

2.83 kg

Weighted consumption

40 kWh/1.000h

Service life

100000 h

Number of lights on LS B16A

20 St.

Number of lights on LS C16A

34 St.

Inrush current level

19.81 A

Inrush current duration

268 μs

Manual (pdf)

Datasheet (pdf)

CE declaration (pdf)

REACh (pdf)

Removal instructions (pdf)

Tender Text (txt)
