The average lifespan of a lightbulb or light source in hours.
IP54
IP protection rating
The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK06
IK impact resistance rating
The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
Technical data
Product name
Q-RING
EAN Number
4024163290739
Colour
white
Luminous Flux
950 lm
Colour temperature
3000 Kelvin
CRI
80
CCT switch
No
Operating efficiency (LOR)
0.53
Diameter
27 cm
Material
Aluminium
IP Code
IP54
Shock resistance category
IK06
Shock resistance
2 joule
electrical power
10 W
Primary nominal voltage
220-240V V ~ 50/60Hz
Secondary power / secondary voltage
240 mA
Inrush current level
2.4 A
Inrush current duration
81 µs
Number of lights on LS B16A
96
Number of lights on LS C16A
96
Weighted consumption
10 kWh/1.000h
Service life
30000 h
Energy efficiency class
LS_3002
Ambient temperature
40 °C
Glass temperature (light emission)
50 °C
Net weight
1.084 kg
BIG WHITE Page
848
Product information

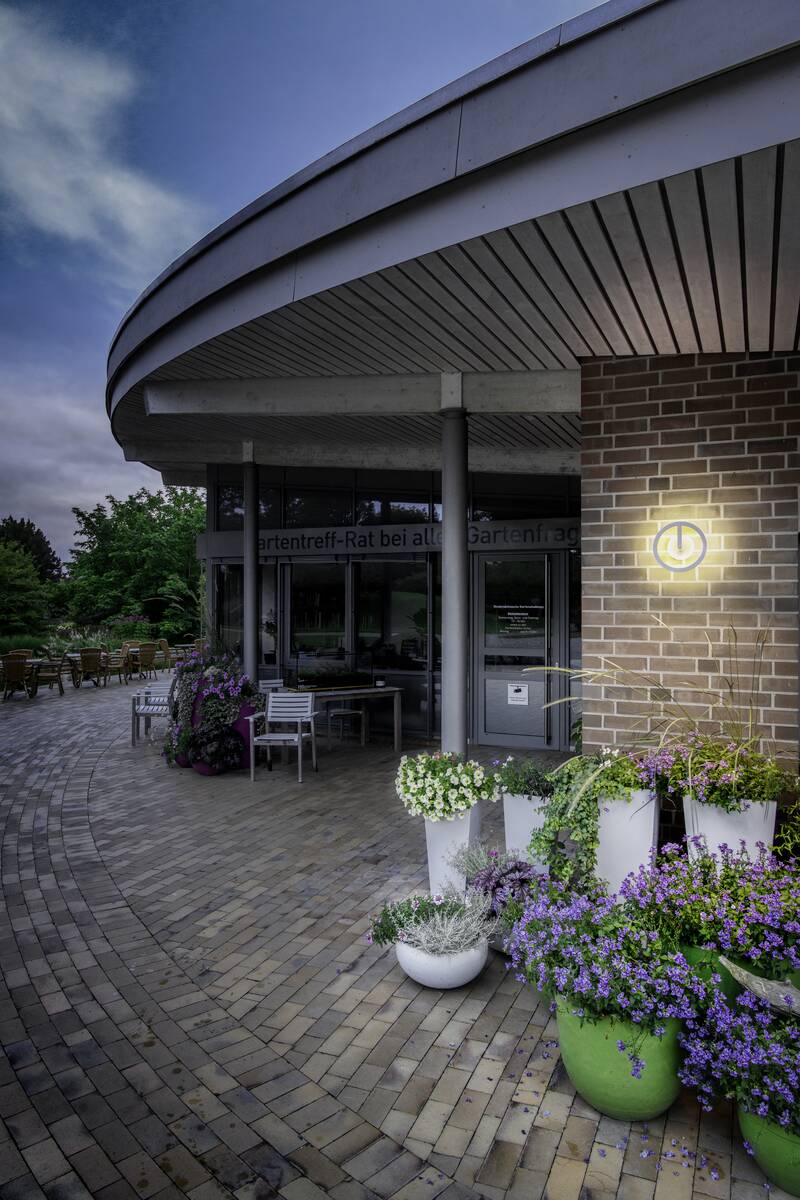

The new Q-RING family elegantly picks up on the trend towards organic shapes. The indirect and warm white light (3000 K) illuminates façades discreetly and glare-free. Thanks to the special surface treatment, it can also be used in coastal areas. The integrated sensor system ensures optimum lighting and safety around the clock.
Downloads
Product information
Datasheet (PDF)
Manual (PDF)
Assembly drawings (PDF)
Maßzeichnung (JPG)
Documents
CE declaration (PDF)
REACH (PDF)
Tender data
Tender Text (TXT)
GAEB file (D81)
Lighting planning data
Download ROLF file (ROLF)
Download ULD file (ULD)
