I-RING

RRP£141.00Price for trade customers only, excl. VAT & shipping

50+ in Stock

Art. no.: 1007236

Delivery information

Delivery time: 1–3 working days

Technical overview

50000 h
IP65
IK05

Gimballed: This product can be swivelled and pivoted.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Technical data

Product name: I-RING
EAN Number: 4024163275170
Colour: anthracite
Luminous Flux: 670 lm
Colour temperature: 3000 Kelvin
CRI: 80
CCT switch: No
Operating efficiency (LOR): 0.54
Depth: 8.2 cm
Diameter: 24 cm
Material: aluminium
IP Code: IP65
Shock resistance category: IK05
Rotating or tilting: rotary bar and tiltable
Vertical tilting range: 90 °
Horizontal rotation range: 350 °

electrical power: 9,2 W
Primary nominal voltage: 100-240V V ~ 50/60Hz
Secondary power / secondary voltage: 350 mA
Inrush current level: 12 A
Inrush current duration: 300 µs
Number of lights on LS B16A: 50
Number of lights on LS C16A: 80
Weighted consumption: 10 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_2861
Ambient temperature: 45 °C
Net weight: 1.026 kg
BIG WHITE Page: 783

Product information

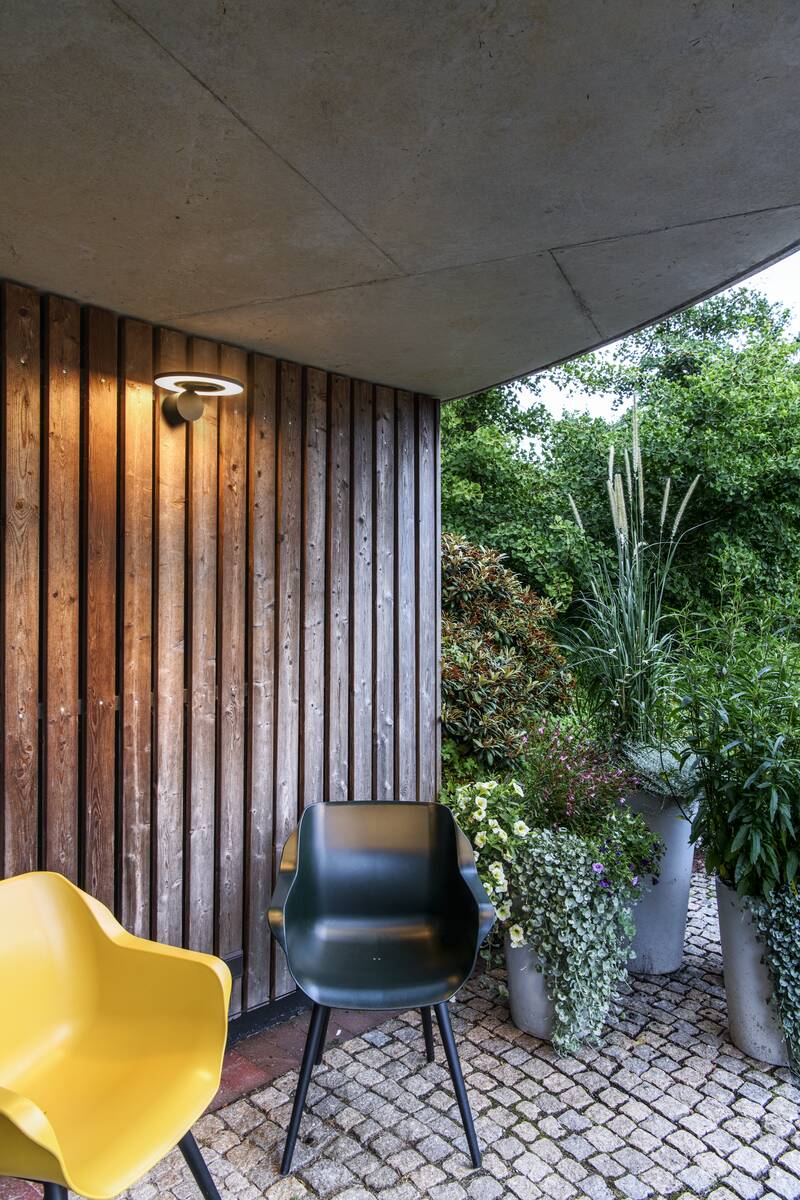

The I-RING surface-mounted wall light is suitable for use in indoor and outdoor areas that require robust, protection-tested lighting. With a power consumption of 9.2 watts and a colour temperature of 3000 K, it produces a pleasant, warm white light with a luminous flux of 670 lumens. The housing is made of aluminium and has a ROUND design, with a diameter of 24 cm and a depth of 8.2 cm. The luminaire is protected to IP65 against dust ingress and jet water and features an impact resistance rating of IK05, making it resistant to mechanical influences. The I-RING surface-mounted wall light is designed for wall installation and offers a long-lasting lighting solution with a declared service life of 50,000 hours.

Downloads

Product information

Manual (PDF)

Removal instructions (PDF)

Assembly drawings (PDF)

Maßzeichnung (JPG)

Documents

CE declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download Rolf Zip file (ZIP)

Download ULD file (ULD)
