D-RING S

NEW

Colour

RRP£85.00Prices for business customers excl. VAT

250+ in Stock

Art. no.: 1007912

Delivery information

Delivery time: 1–3 working days

Technical overview

50000 h
IP65
IK06

Leading and trailing edge phase dimmer: This product is dimmable using a trailing and leading edge phase dimmer.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
CCT switch: By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

Technical data

Product name: D-RING S
EAN Number: 4024163290609
Colour: white
Luminous Flux: 790/820 lm
Colour temperature: 2700/3000 Kelvin
CRI: 80
CCT switch: Yes
Diameter: 16 cm
Material: Aluminium
IP Code: IP65
Shock resistance category: IK06
electrical power: 7,5 W
Primary nominal voltage: 220-240V V ~ 50/60Hz
Secondary power / secondary voltage: 95 mA

Dimmable: Yes
Dimming technology: Leading edge, trailing edge
Inrush current level: 3.44 A
Inrush current duration: 48.4 µs
Number of lights on LS B16A: 213
Number of lights on LS C16A: 213
Weighted consumption: 8 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_2998
Ambient temperature: 45 °C
Risk group: 1
Net weight: 0.542 kg
BIG WHITE Page: 849

Product information

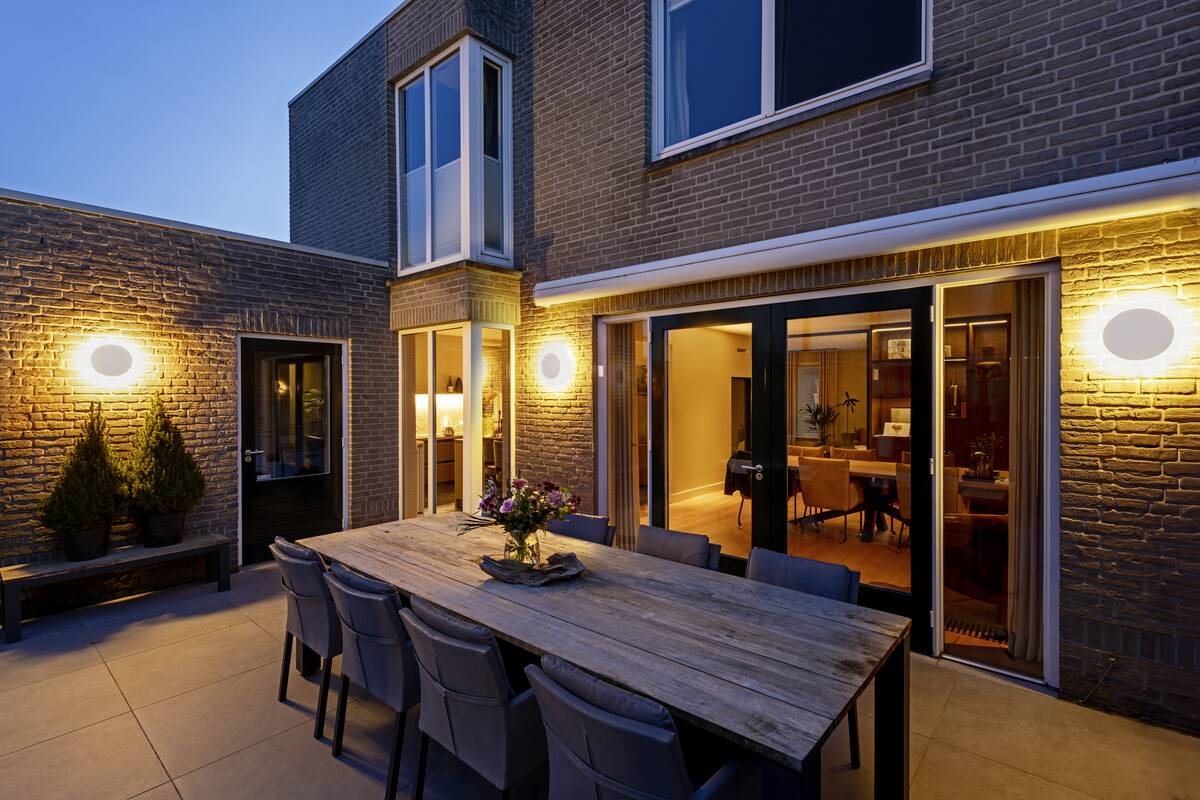

The new D-RING family elegantly picks up on the trend towards organic shapes. The dimmable indirect warm white light (2700 K / 3000 K), which can be adjusted via a CCT switch, discreetly and glare-free sets the scene for the facades. The two different diameters offer plenty of creative scope. Thanks to the special surface treatment, it can also be used near the coast.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

Assembly drawings (PDF)

Maßzeichnung (JPG)

Documents

CE declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download Rolf Zip file (ZIP)

Download ULD file (ULD)
