I-RING

TOPSELLER

Select the item now with matching

RRP£197.00Price for trade customers only, excl. VAT & shipping

50+ in Stock

Art. no.: 1007237

Delivery information

Delivery time: 1–3 working days

Technical overview

50000 h
IP65
IK05

Gimballed: This product can be swivelled and pivoted.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Technical data

Product name: I-RING 65
EAN Number: 4024163275163
Colour: anthracite
Luminous Flux: 670 lm
Colour temperature: 3000 Kelvin
CRI: 80
CCT switch: No
Operating efficiency (LOR): 0.54
Height: 65 cm
Diameter: 24 cm
Material: aluminium
IP Code: IP65
Shock resistance category: IK05
Rotating or tilting: rotary bar and tiltable
Vertical tilting range: 90 °
Horizontal rotation range: 350 °

electrical power: 9,2 W
Primary nominal voltage: 100-240V V ~ 50/60Hz
Secondary power / secondary voltage: 350 mA
Connection cable length: 10 cm
Inrush current level: 12 A
Inrush current duration: 300 µs
Number of lights on LS B16A: 50
Number of lights on LS C16A: 80
Weighted consumption: 10 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_2861
Ambient temperature: 45 °C
Risk group: 0
Net weight: 2.313 kg
BIG WHITE Page: 653

Product information

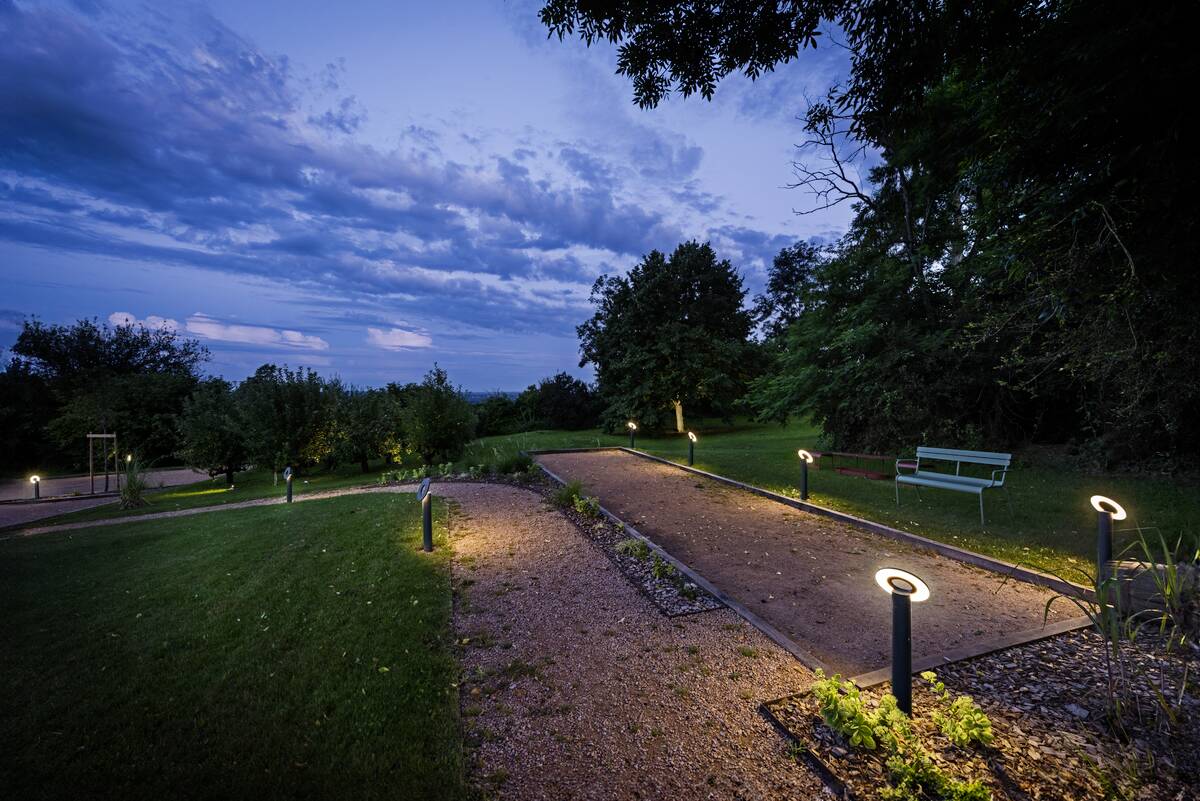

The I-RING floor lamp is suitable for use in indoor and protected outdoor areas where robust and certified protective lighting is required. It has a power consumption of 9.2 W and a colour temperature of 3000 K, providing a pleasant warm white illumination. With a luminous flux of 670 lumens and a lifespan of 50,000 hours, it offers a reliable light source. The housing is made of aluminium and measures 24 cm in diameter with a height of 65 cm. The luminaire is rated IP65 for protection against dust ingress and water jets and has an impact resistance class of IK05. This makes it resistant to mechanical impacts and suitable for a wide range of applications in demanding environments.

Downloads

Product information

Manual (PDF)

Removal instructions (PDF)

Assembly drawings (PDF)

Maßzeichnung (JPG)

Documents

CE declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download ROLF file (ROLF)

Download ULD file (ULD)
