LINIUS 150

NEW

Color

Colour temperature

Dispatch on 28/10/2026

Art. no.: 1011958

Delivery information

Delivery time: 1–3 working days

Made to order

Technical overview

90 °
90 °
50000 h
IP20
IK02
200 cm

DALI dimming: This product is dimmable using a DALI dimmer.
Indirect lighting - beam angle: This value describes the beam angle of the indirect lighting. The smaller the angle, the more concentrated the light will be.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
Pendant cable length: Pendant cable length in cm.

Technical data

Product name: LINIUS 150
EAN Number: 4024163337748
Colour: black
Assembly: Surface
Luminous Flux: 3350 lm
Colour temperature: 2700 Kelvin
CRI: 90
Half beam angle: 90 °
CCT Switch: No

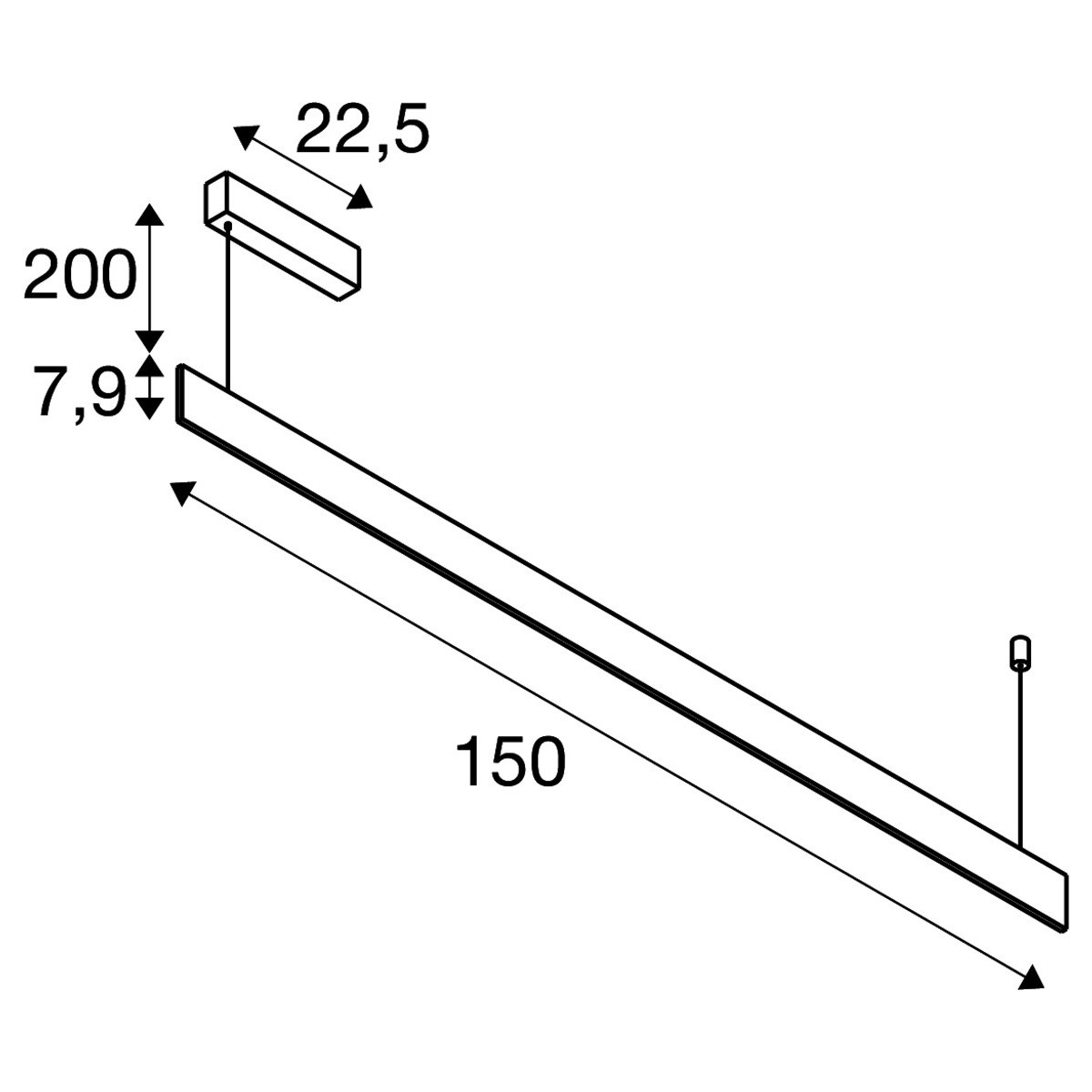

Length: 150 cm
Width: 0.76 cm
Height: 7.9 cm
Pendant length: 200 cm
Shape: rectangular
Material: Aluminum
IP Code: IP20
Shock resistance category: IK02
Assembly details: Ceiling suspended

electrical power: 40 W
Primary nominal voltage: 220-240V ~ 0/50/60Hz
Secondary power / secondary voltage: 1050
Dimmable: Yes
Dimming technology: DALI 2
Inrush current level: 65 A
Inrush current duration: 200 µs
Number of lights on LS B16A: 15
Number of lights on LS C16A: 24
Weighted consumption: 40 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_10390
Ambient temperature: 45 °C
Risk group: 0
Net weight: 2.95 kg
BIG WHITE Page: 237

Product information

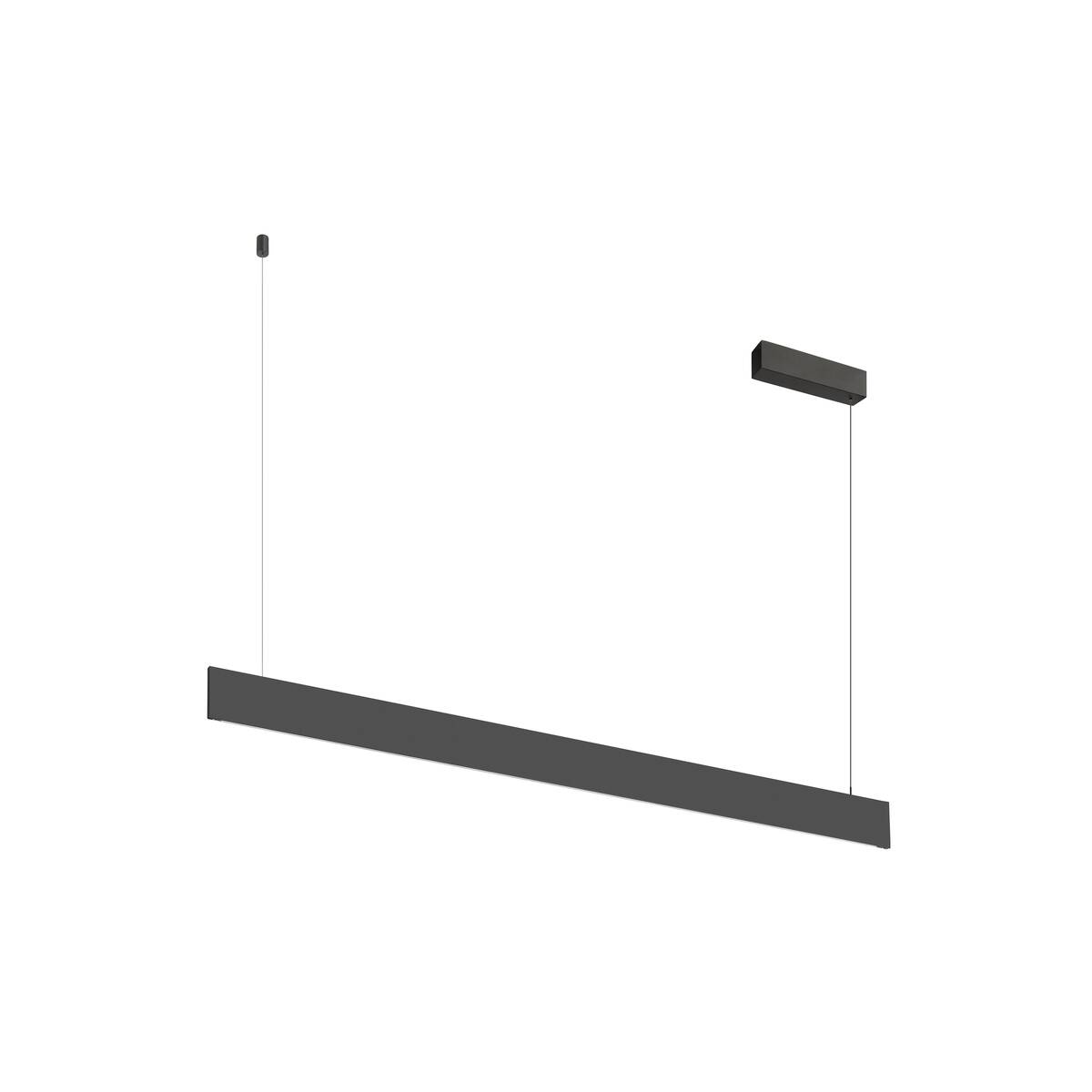

The LINIUS 150 pendant light is designed for indoor use and is particularly suitable for ceiling mounting above tables or in open-plan spaces. It offers a luminous flux of 3350 lumens at a colour temperature of 2700 Kelvin and a beam angle of 90 degrees, providing pleasant, directed illumination. The luminaire features a DALI-2 dimming function, allowing flexible light control. The housing is made of aluminium and includes a rectangular ceiling rose. With a length of 150 cm and a suspension length of 200 cm, it can be adapted to various ceiling heights. The IP20 protection rating and IK02 impact resistance ensure reliable operation in protected indoor areas.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

Dimensional drawing (JPG)

Documents

CE Declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download ROLF Zip file (ZIP)

Download ULD file (ULD)
