LINIUS 120

NEW

Color

Colour temperature

Dispatch on 27/10/2026

Art. no.: 1011940

Delivery information

Delivery time: 1–3 working days

Made to order

Technical overview

90 °
90 °
50000 h
IP20
IK02
200 cm

Trailing edge phase dimmer: Dieses Produkt ist dimmbar über einen Phasenabschnittsdimmer.
Indirect lighting - beam angle: This value describes the beam angle of the indirect lighting. The smaller the angle, the more concentrated the light will be.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
Pendant cable length: Pendant cable length in cm.

Technical data

Product name: LINIUS 120
EAN Number: 4024163337922
Colour: black
Assembly: Recessed
Luminous Flux: 3100 lm
Colour temperature: 3000 Kelvin
CRI: 90
Half beam angle: 90 °
CCT Switch: No
Length: 121 cm
Width: 0.76 cm
Height: 7.9 cm
Pendant length: 200 cm
Shape: rectangular
Material: Aluminum
IP Code: IP20
Shock resistance category: IK02
Installation depth: 15 cm

Shape of cut-out: round
Assembly details: Ceiling
electrical power: 34 W
Primary nominal voltage: 220-240V ~ 0/50/60Hz
Secondary power / secondary voltage: 900
Dimmable: Yes
Dimming technology: trailing edge
Inrush current level: 15 A
Inrush current duration: 10 µs
Number of lights on LS B16A: 64
Number of lights on LS C16A: 128
Weighted consumption: 34 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_10388
Ambient temperature: 45 °C
Risk group: 0
Net weight: 2 kg
BIG WHITE Page: 235

Product information

The pendant light LINIUS 120 is designed for ceiling installation and is suitable for indoor use, for example in offices or public areas. It provides a luminous flux of 3100 lumens with a colour temperature of 3000 K and a beam angle of 90°. The luminaire is equipped with phase-cut dimming, allowing flexible light control. The housing is made of aluminium and steel, while the canopy is rectangular and the cut-out is round. With a length of 121 cm, a width of 0.76 cm, and a height of 7.9 cm, it offers a slim design. The pendant length is 200 cm. The IP20 protection rating and impact resistance according to IK02 ensure safe operation in protected indoor areas. The luminaire is designed for a service life of 50,000 hours.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

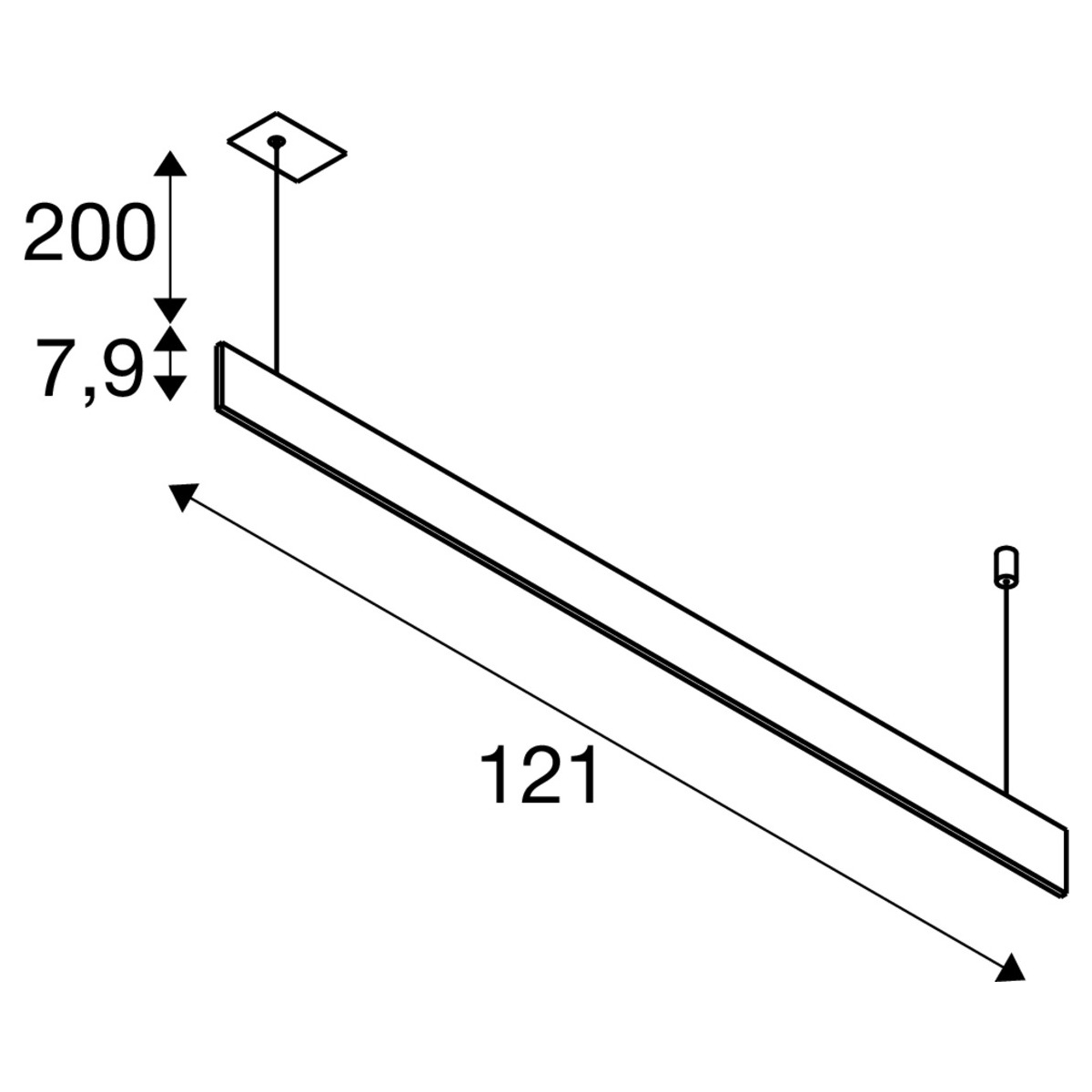

Dimensional drawing (JPG)

Documents

CE Declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download ROLF Zip file (ZIP)

Download ULD file (ULD)
