LINIUS 120

NEW

Color

Colour temperature

Dispatch on 27/10/2026

Art. no.: 1011950

Delivery information

Delivery time: 1–3 working days

Made to order

Technical overview

90 °
90 °
50000 h
IP20
IK02
200 cm

DALI dimming: This product is dimmable using a DALI dimmer.
Indirect lighting - beam angle: This value describes the beam angle of the indirect lighting. The smaller the angle, the more concentrated the light will be.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
Pendant cable length: Pendant cable length in cm.

Technical data

Product name: LINIUS 120
EAN Number: 4024163337823
Colour: black
Assembly: Surface
Luminous Flux: 3000 lm
Colour temperature: 2700 Kelvin
CRI: 90
Half beam angle: 90 °
CCT Switch: No
Length: 121 cm
Width: 0.76 cm
Height: 7.9 cm
Pendant length: 200 cm
Shape: rectangular
Material: Aluminum
IP Code: IP20
Shock resistance category: IK02
Assembly details: Ceiling suspended

electrical power: 34 W
Primary nominal voltage: 220-240V ~ 0/50/60Hz
Secondary power / secondary voltage: 900
Dimmable: Yes
Dimming technology: DALI 2
Inrush current level: 65 A
Inrush current duration: 200 µs
Number of lights on LS B16A: 15
Number of lights on LS C16A: 24
Weighted consumption: 34 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_10386
Ambient temperature: 45 °C
Risk group: 0
Net weight: 2.65 kg
BIG WHITE Page: 235

Product information

The LINIUS 120 pendant luminaire is designed for indoor use and is particularly suitable for illuminating work and common areas. It offers a luminous flux of 3000 lumens with a colour temperature of 2700 K and a beam angle of 90°, providing a pleasant, warm white light. The luminaire features DALI-2 dimming for flexible light control. The housing is made of aluminium and comes with a rectangular ceiling rose for mounting. With a length of 121 cm, a width of 0.76 cm, and a height of 7.9 cm, the luminaire has a slim design. The suspension length is 200 cm. Protection class IP20 and impact resistance IK02 ensure safe use in protected indoor environments. The declared service life is 50,000 hours.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

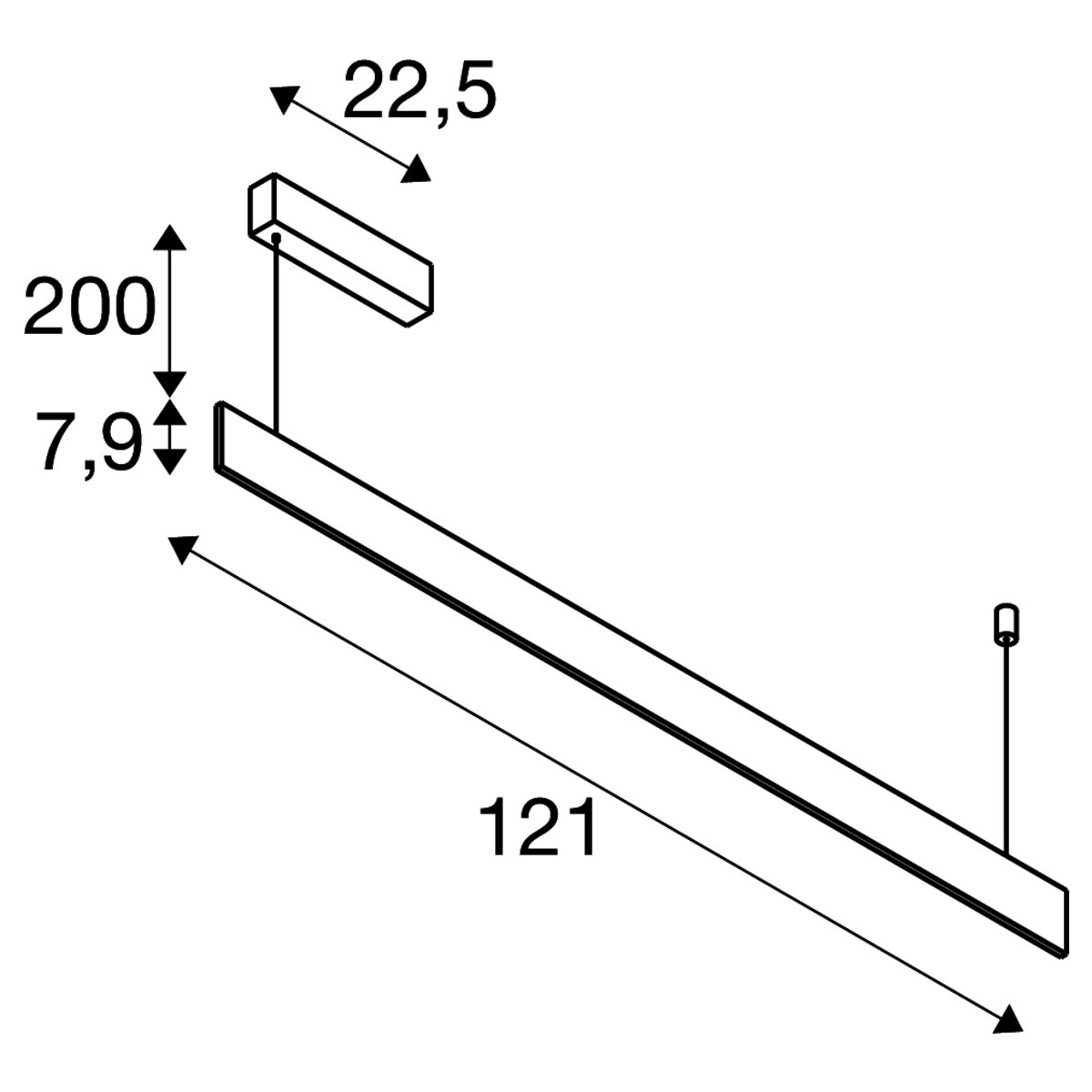

Dimensional drawing (JPG)

Documents

CE Declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download ROLF Zip file (ZIP)

Download ULD file (ULD)
