LINIUS 120

NEW

Color

Colour temperature

Dispatch on 27/10/2026

Art. no.: 1011954

Delivery information

Delivery time: 1–3 working days

Made to order

Technical overview

90 °
90 °
50000 h
IP20
IK02
200 cm

DALI dimming: This product is dimmable using a DALI dimmer.
Indirect lighting - beam angle: This value describes the beam angle of the indirect lighting. The smaller the angle, the more concentrated the light will be.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
Pendant cable length: Pendant cable length in cm.

Technical data

Product name: LINIUS 120
EAN Number: 4024163337786
Colour: black
Assembly: Recessed
Luminous Flux: 3000 lm
Colour temperature: 2700 Kelvin
CRI: 90
Half beam angle: 90 °
CCT Switch: No
Length: 121 cm
Width: 0.76 cm
Height: 7.9 cm
Pendant length: 200 cm
Shape: rectangular
Material: Aluminum
IP Code: IP20
Shock resistance category: IK02
Installation depth: 15 cm

Shape of cut-out: round
Assembly details: Ceiling
electrical power: 34 W
Primary nominal voltage: 220-240V ~ 0/50/60Hz
Secondary power / secondary voltage: 900
Dimmable: Yes
Dimming technology: DALI 2
Inrush current level: 65 A
Inrush current duration: 200 µs
Number of lights on LS B16A: 15
Number of lights on LS C16A: 24
Weighted consumption: 34 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_10386
Ambient temperature: 45 °C
Risk group: 0
Net weight: 2.06 kg
BIG WHITE Page: 235

Product information

The LINIUS 120 pendant luminaire is designed for ceiling installation and is particularly suitable for offices, meeting rooms, and similar indoor spaces. It delivers a luminous flux of 3000 lumens at a power consumption of 34 watts and features a warm white light colour of 2700 Kelvin. The luminaire has a rectangular canopy and is equipped with a round cut-out for recessed mounting. The housing is made of aluminium, with a protection rating of IP20 and impact resistance classified as IK02. The light distribution is provided with a beam angle of 90 degrees. Dimming is carried out via DALI 2. The pendant length is 200 cm; the luminaire measures 121 cm in length, 0.76 cm in width, and 7.9 cm in height. The declared LED lifetime is 50,000 hours.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

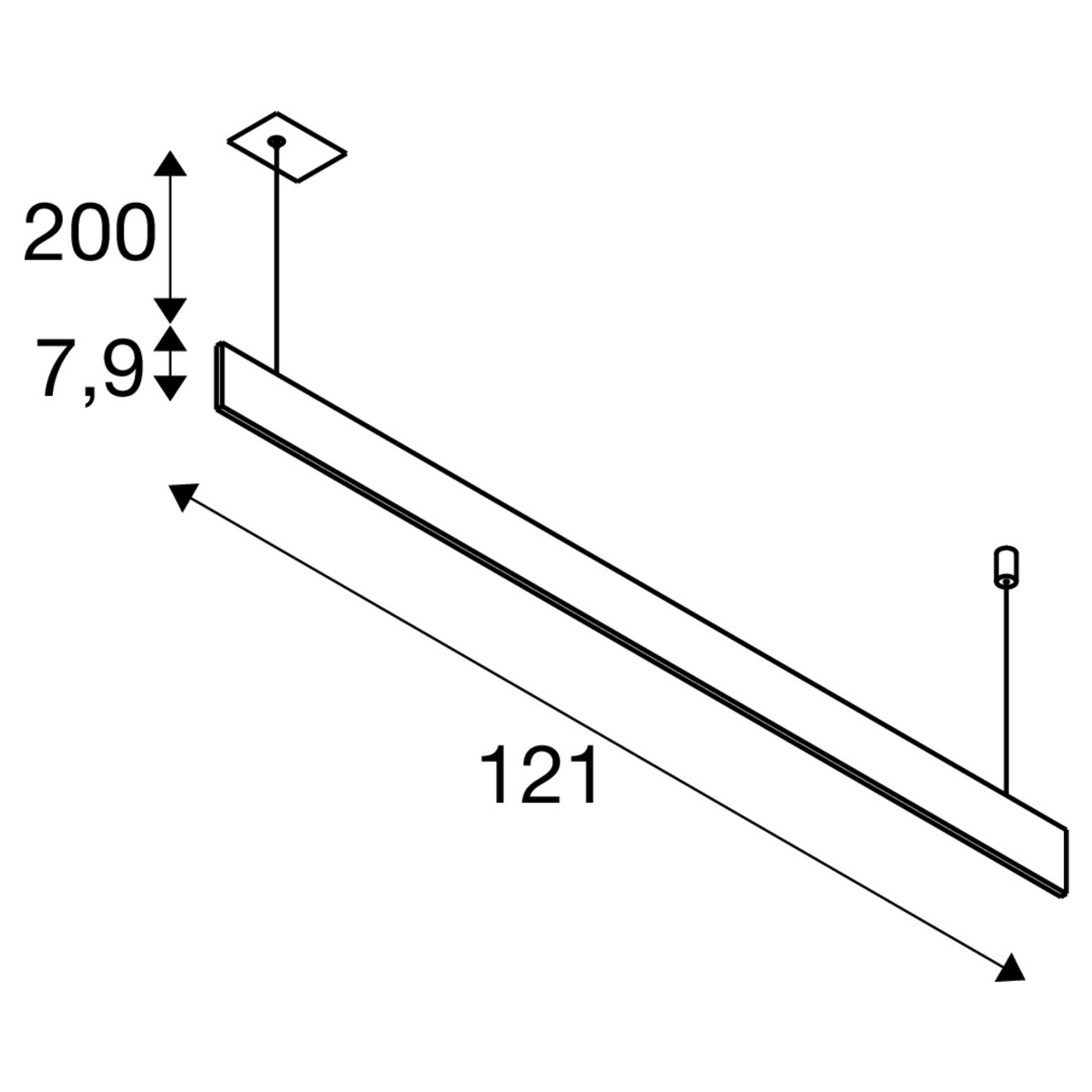

Dimensional drawing (JPG)

Documents

CE Declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download ROLF Zip file (ZIP)

Download ULD file (ULD)
