Q-RING

Colour

RRP£154.00Price for trade customers only, excl. VAT & shipping

250+ in Stock

Art. no.: 1007916

Delivery information

Delivery time: 1–3 working days

Technical overview

30000 h
IP54
IK06

Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Technical data

Product name: Q-RING
EAN Number: 4024163290746
Colour: black
Luminous Flux: 950 lm
Colour temperature: 3000 Kelvin
CRI: 80
CCT switch: No
Operating efficiency (LOR): 0.53
Diameter: 27 cm
Material: Aluminium
IP Code: IP54
Shock resistance category: IK06
Shock resistance: 2 joule
electrical power: 10 W

Primary nominal voltage: 220-240V V ~ 50/60Hz
Secondary power / secondary voltage: 240 mA
Inrush current level: 2.4 A
Inrush current duration: 81 µs
Number of lights on LS B16A: 96
Number of lights on LS C16A: 96
Weighted consumption: 10 kWh/1.000h
Service life: 30000 h
Energy efficiency class: LS_3002
Ambient temperature: 40 °C
Glass temperature (light emission): 50 °C
Net weight: 1.068 kg
BIG WHITE Page: 782

Product information

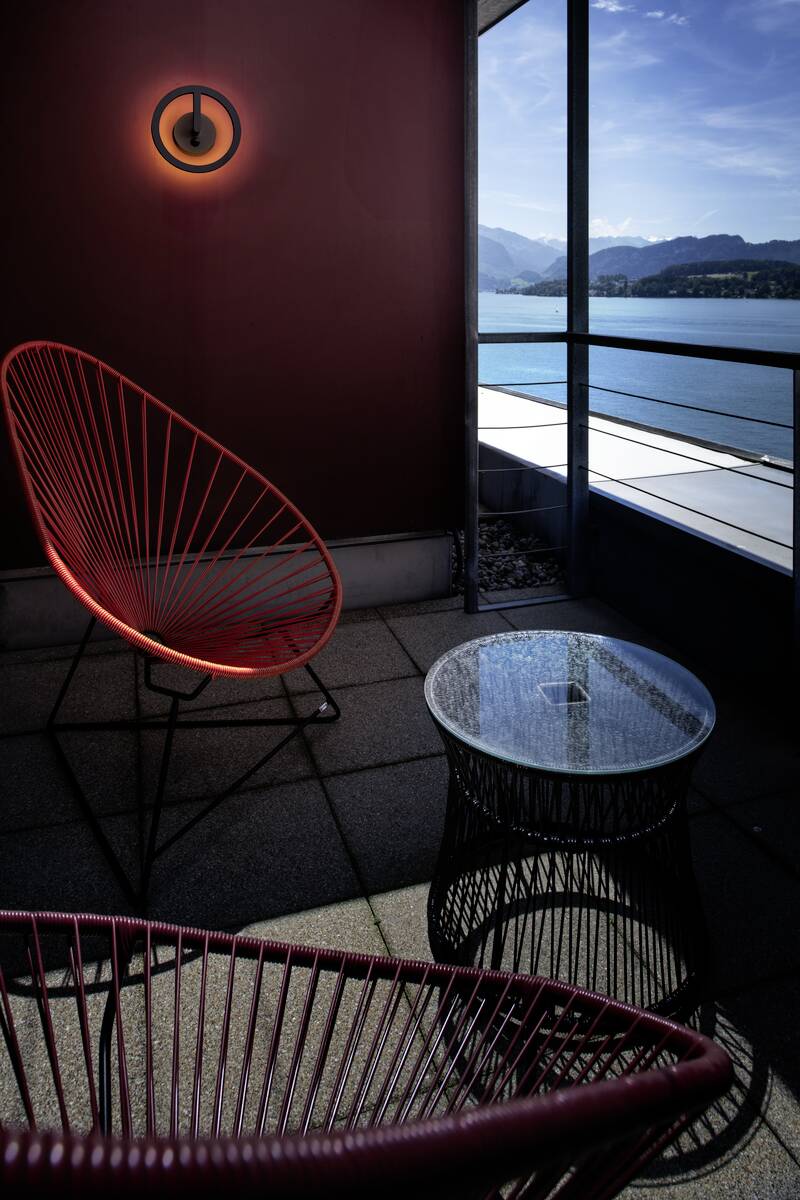

The Q-RING wall light is designed for wall mounting and is suitable for use in indoor and sheltered outdoor areas. It features an integrated PIR motion sensor with an adjustable detection range of 6 to 10 metres, as well as brightness and time control settings. The luminaire provides a light output of 950 lumens at a colour temperature of 3000 K. The housing is made of aluminium and plastic, protected to IP54 against dust and splashing water, and has an impact resistance rating of IK06. With a product depth of 11 cm and a diameter of 27 cm, the luminaire is compactly designed and allows for easy wall mounting. The declared service life is 30,000 hours.

Downloads

Product information

Manual (PDF)

Assembly drawings (PDF)

Maßzeichnung (JPG)

Documents

CE declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download ROLF file (ROLF)

Download ULD file (ULD)
