OVANA 44

NEW

Color

Available as of 30/11/2026

Art. no.: 1011997

Delivery information

Delivery time: 1–3 working days

Technical overview

115 °
50000 h
IP20
IK02
22
200 cm

Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
UGR ≤: UGR= Unified Glare Rating. Indicates the standardised value of psychological glare. The smaller the value is, the lower the glare.
Pendant cable length: Pendant cable length in cm.

Technical data

Product name: OVANA 44
EAN Number: 4024163339223
Colour: black
Assembly: Surface
Luminous Flux: 1490-1650 lm
Colour temperature: 2200-6500 Kelvin
CRI: 90
Half beam angle: 115 °
UGR ≤: 22
Different light outlets: 1
Height: 12 cm
Diameter: 44 cm
Pendant length: 200 cm
Shape: round
Material: Steel
IP Code: IP20
Shock resistance category: IK02
Assembly details: Ceiling suspended

electrical power: 14 W
Primary nominal voltage: 220-240V ~ 50/60Hz
Secondary power / secondary voltage: 350
Dimmable: Yes
Dimming technology: Dim-to-Warm, Zigbee
Inrush current level: 3.96 A
Inrush current duration: 90 µs
Number of lights on LS B16A: 60
Number of lights on LS C16A: 100
Weighted consumption: 14 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_10493
Ambient temperature: 45 °C
TC point (°C): 85 °C
Risk group: 1
Net weight: 3.32 kg
BIG WHITE Page: 197

Product information

The OVANA 44 is a pendant luminaire particularly suitable for indoor use. It features a dimmable LED light source with a colour temperature range from 2200 to 6500 Kelvin, which can be controlled via Zigbee. The luminaire produces a luminous flux of 1490 to 1650 lumens at a power consumption of 14 watts and a beam angle of 115 degrees. The housing is made of steel and polycarbonate, with a ROUND canopy design. With a suspension length of 200 centimetres, a diameter of 44 centimetres, and a height of 12 centimetres, the luminaire offers flexible installation options. The protection rating is IP20, and the impact resistance corresponds to IK02. The luminaire supports Dim-to-Warm technology, allowing seamless adjustment of the light colour when dimming.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

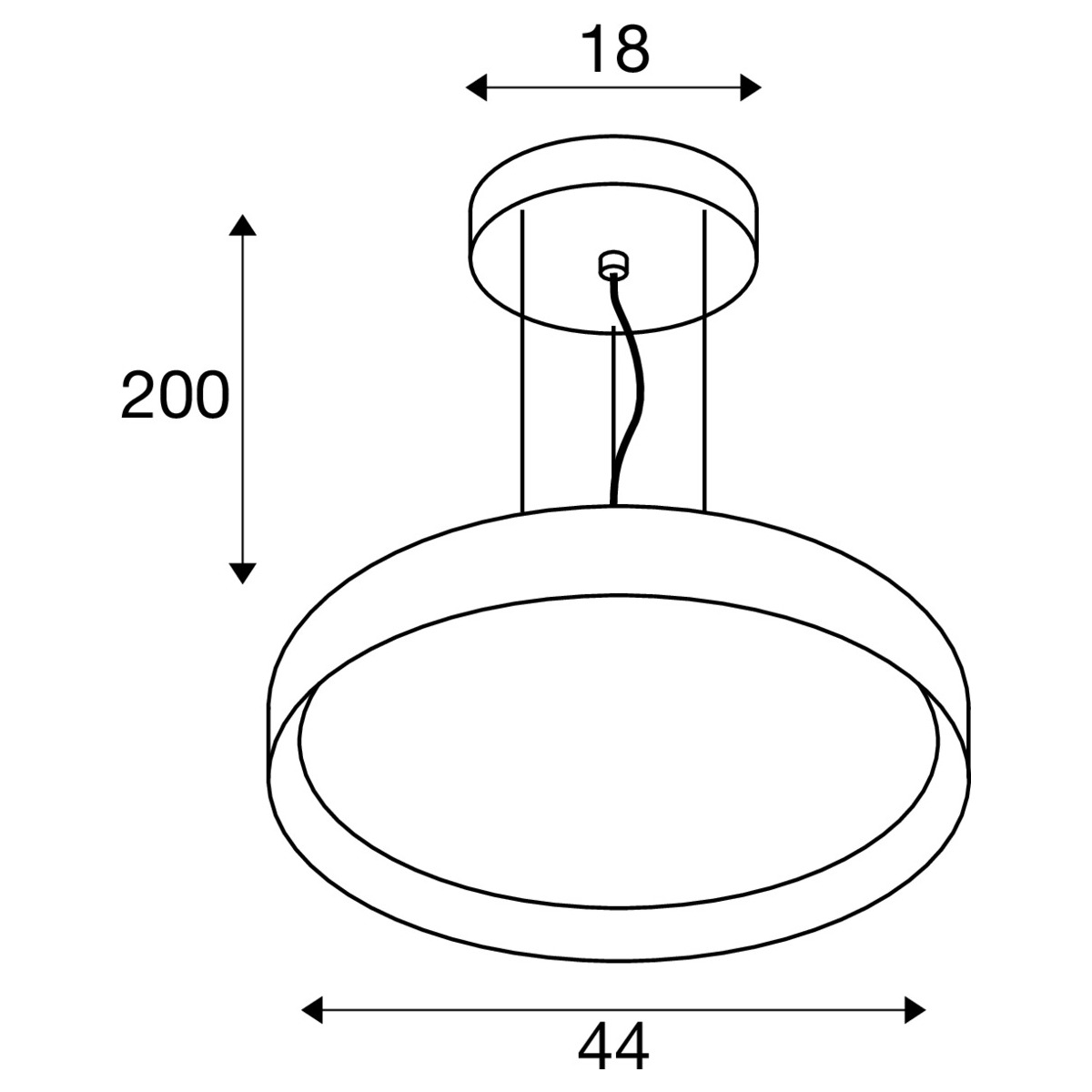

Dimensional drawing (JPG)

Documents

CE Declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download ROLF Zip file (ZIP)

Download ULD file (ULD)
