SIMA SENSOR

RRP£156.00Prices for business customers excl. VAT

250+ in Stock

Art. no.: 1005088

Delivery information

Delivery time: 1–3 working days

Technical overview

120
30000 h
IP44
IK02

Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Technical data

Product name: SIMA
EAN Number: 4024163252140
Colour: white
Luminous Flux: 2200 lm
Colour temperature: 3000 Kelvin
CRI: 90
Beam angle: 120 °
CCT switch: No
Length: 30 cm
Width: 30 cm
Height: 5.8 cm
Material: polycarbonate (PC)
IP Code: IP44
Shock resistance category: IK02

electrical power: 24 W
Primary nominal voltage: 220-240V V ~ 50/60Hz
Secondary power / secondary voltage: 320 mA
Dali capable: No
Weighted consumption: 24 kWh/1.000h
Service life: 30000 h
Energy efficiency class: LS_2126
Ambient temperature: 40 °C
Risk group: 1
Net weight: 1.326 kg
BIG WHITE Page: 425

Product information

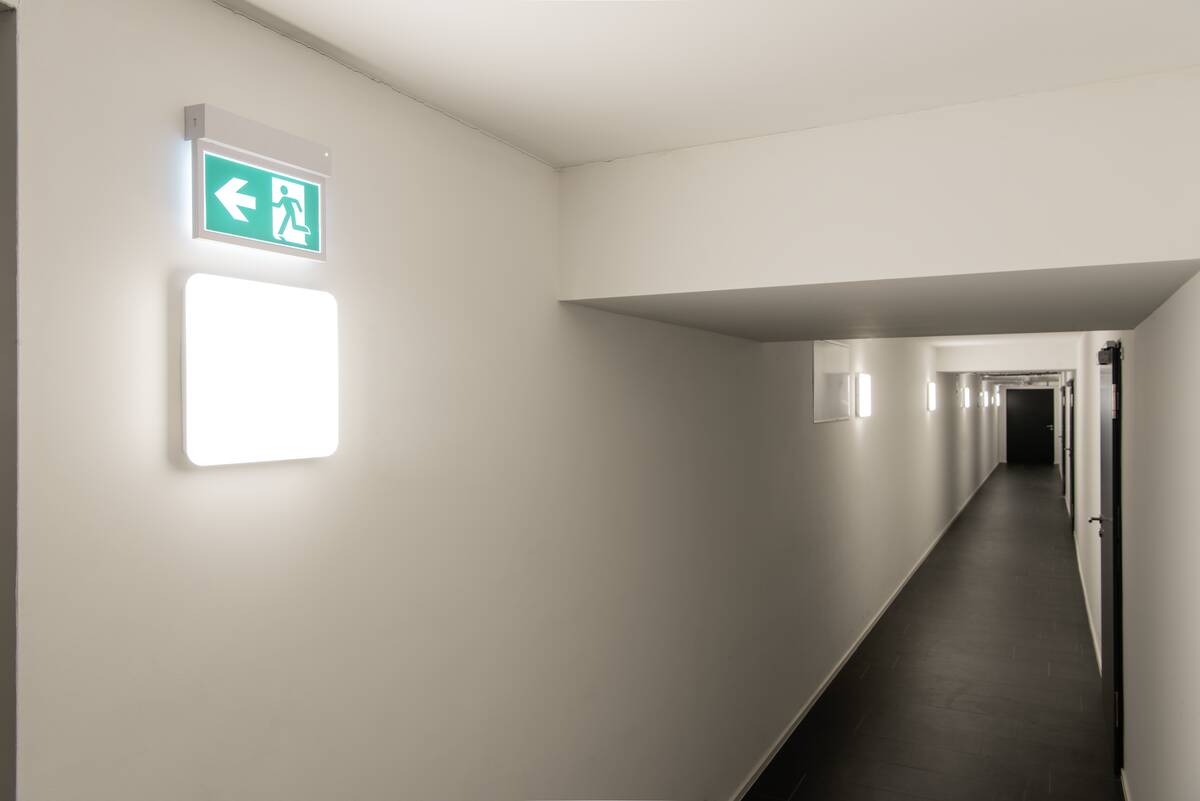

This allows you to opt for sustainable lighting indoors too: SIMA is one of the SLV luminaires that is made from 48% recycled plastics (PCR). It is also a shining example of how quality and high durability can be combined in the most environmentally friendly way possible. The white wall and ceiling surface-mounted light with its solid and flat construction, high colour rendering index (CRI >90) and dimmable warm-white light (3000 K) has a strong look, which can be sustainably used in both the private and commercial sector, especially in entrance areas, corridors and basements. And let's not forget the LED sensor, which reliably detects every movement. The light duration and sensitivity can be adjusted individually. The spacer makes it also suitable for cable surface mounting.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

Removal instructions (PDF)

Assembly drawings (PDF)

Maßzeichnung (JPG)

Documents

CE declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download Rolf Zip file (ZIP)

Download ULD file (ULD)
