SIMA SENSOR

RRP£135.00Price for trade customers only, excl. VAT & shipping

250+ in Stock

Art. no.: 1005085

Optionally available

Delivery information

Delivery time: 1–3 working days

Technical overview

120
30000 h
IP44
IK02

Trailing edge phase dimmer: This product is dimmable using a trailing edge phase dimmer.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Technical data

Product name: SIMA
EAN Number: 4024163252119
Colour: white
Luminous Flux: 2200 lm
Colour temperature: 3000 Kelvin
CRI: 90
Beam angle: 120 °
CCT switch: No
Height: 5.8 cm
Diameter: 30 cm
Material: polycarbonate (PC)
IP Code: IP44
Shock resistance category: IK02
electrical power: 24 W

Primary nominal voltage: 220-240V V ~ 50/60Hz
Secondary power / secondary voltage: 320 mA
Dimmable: Yes
Dimming technology: trailing edge
Dali capable: No
Weighted consumption: 24 kWh/1.000h
Service life: 30000 h
Energy efficiency class: LS_2225
Ambient temperature: 40 °C
Risk group: 1
Net weight: 1.173 kg

Product information

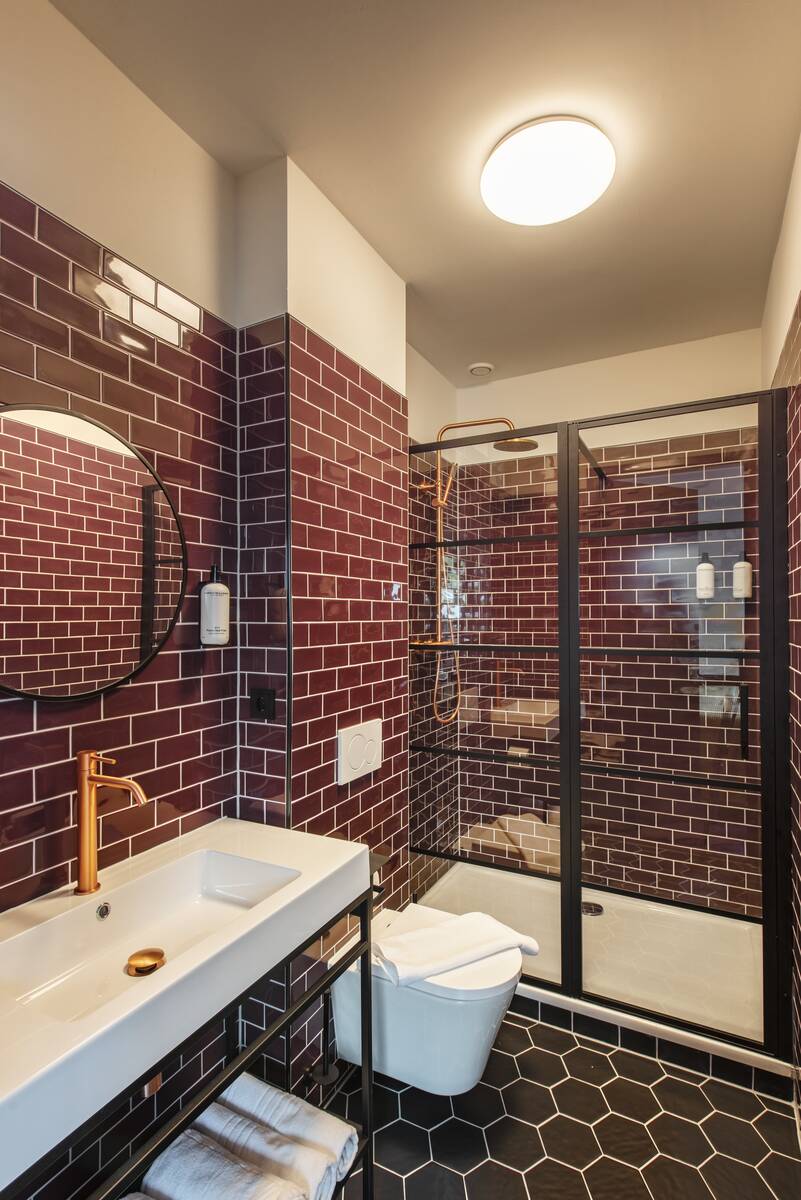

The SIMA is a ROUND indoor LED wall and ceiling surface-mounted luminaire with a colour temperature of 3000 K. It is suitable for installation in indoor areas and provides a luminous flux of 2200 lumens. The luminaire features phase-cut dimming, allowing flexible light control. The housing is made of polycarbonate, ensuring a compact installation height of 5.8 cm with a diameter of 30 cm. With an IP44 rating, the luminaire is protected against splashing water, and its impact resistance corresponds to IK02 class. The SIMA offers a declared lifespan of 30,000 hours and is designed for use on walls or ceilings.

Downloads

Product information

Manual (PDF)

Removal instructions (PDF)

Assembly drawings (PDF)

Maßzeichnung (JPG)

Documents

CE declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download Rolf Zip file (ZIP)

Download ULD file (ULD)

FIND A DIMMER. GOOD COMBINATION.

Please note the minimum load of the dimmers used.

Berker 2873
Niko 310-0190X
LK Fuga LED Dimmer 180 Touch
Busch Jäger (6523U)
Eltako EUD 61 NPN-UC
Legrand PRO21 LED Dimmer 775659
