SIMA SENSOR

RRP£135.00Price for trade customers only, excl. VAT & shipping

100+ in Stock

Art. no.: 1005087

Optionally available

Delivery information

Delivery time: 1–3 working days

Technical overview

120
30000 h
IP44
IK02

Trailing edge phase dimmer: This product is dimmable using a trailing edge phase dimmer.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Technical data

Product name: SIMA
EAN Number: 4024163252133
Colour: white
Luminous Flux: 2200 lm
Colour temperature: 3000 Kelvin
CRI: 90
Beam angle: 120 °
CCT switch: No
Length: 30 cm
Width: 30 cm
Height: 5.8 cm
Material: polycarbonate (PC)
IP Code: IP44
Shock resistance category: IK02

electrical power: 24 W
Primary nominal voltage: 220-240V V ~ 50/60Hz
Secondary power / secondary voltage: 320 mA
Dimmable: Yes
Dimming technology: trailing edge
Dali capable: No
Weighted consumption: 24 kWh/1.000h
Service life: 30000 h
Energy efficiency class: LS_2126
Ambient temperature: 40 °C
Risk group: 1
Net weight: 1.329 kg
BIG WHITE Page: 394

Product information

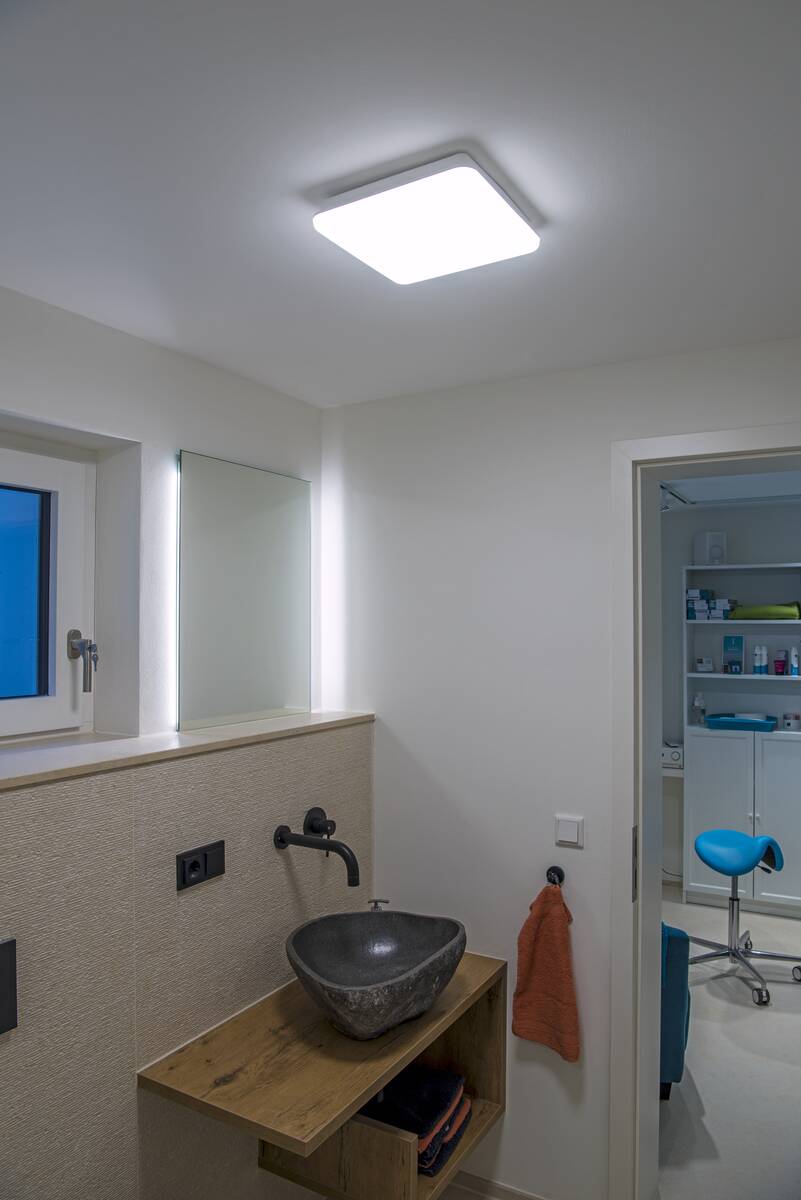

The SIMA is an indoor LED wall and ceiling surface-mounted luminaire with a square design and a colour temperature of 3000 K. It is suitable for use in indoor spaces, such as residential or work areas, and offers dimmable light control via phase-cut dimming. The luminaire provides a luminous flux of 2200 lumens and a declared service life of 30,000 hours. The housing is made of polycarbonate, ensuring a robust and durable construction. With dimensions of 30 x 30 cm and a height of 5.8 cm, it is compact and unobtrusive to install. The IP44 rating provides protection against splashing water, while the IK02 impact resistance class offers protection against light mechanical impacts.

Downloads

Product information

Manual (PDF)

Removal instructions (PDF)

Assembly drawings (PDF)

Maßzeichnung (JPG)

Documents

CE declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download Rolf Zip file (ZIP)

Download ULD file (ULD)

FIND A DIMMER. GOOD COMBINATION.

Please note the minimum load of the dimmers used.

Berker 2873
Niko 310-0190X
Jung 224 LED UDD
LK Fuga LED Dimmer 180 Touch
Busch Jäger (6523U)
Merten MEG5134-0000
Eltako EUD 61 NPN-UC
Legrand PRO21 LED Dimmer 775659
