SENSER 2.0 12

NEW

Available as of 11/11/2026

Art. no.: 1012206

Delivery information

Delivery time: 1–3 working days

Technical overview

90
50000 h
IP20
IK02

DALI dimming: This product is dimmable using a DALI dimmer.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
CCT switch: By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

Technical data

Product name: SENSER 2.0 12
EAN Number: 4024163339773
Colour: white
Assembly: Recessed
Luminous Flux: 600/650 lm
Colour temperature: 3000/4000 Kelvin
CRI: 90
Half beam angle: 90 °
CCT Switch: Yes
Height: 2.4 cm
Diameter: 12 cm
Shape: round
Material: Aluminum
IP Code: IP20
Shock resistance category: IK02
Shock resistance: 0.2 joule

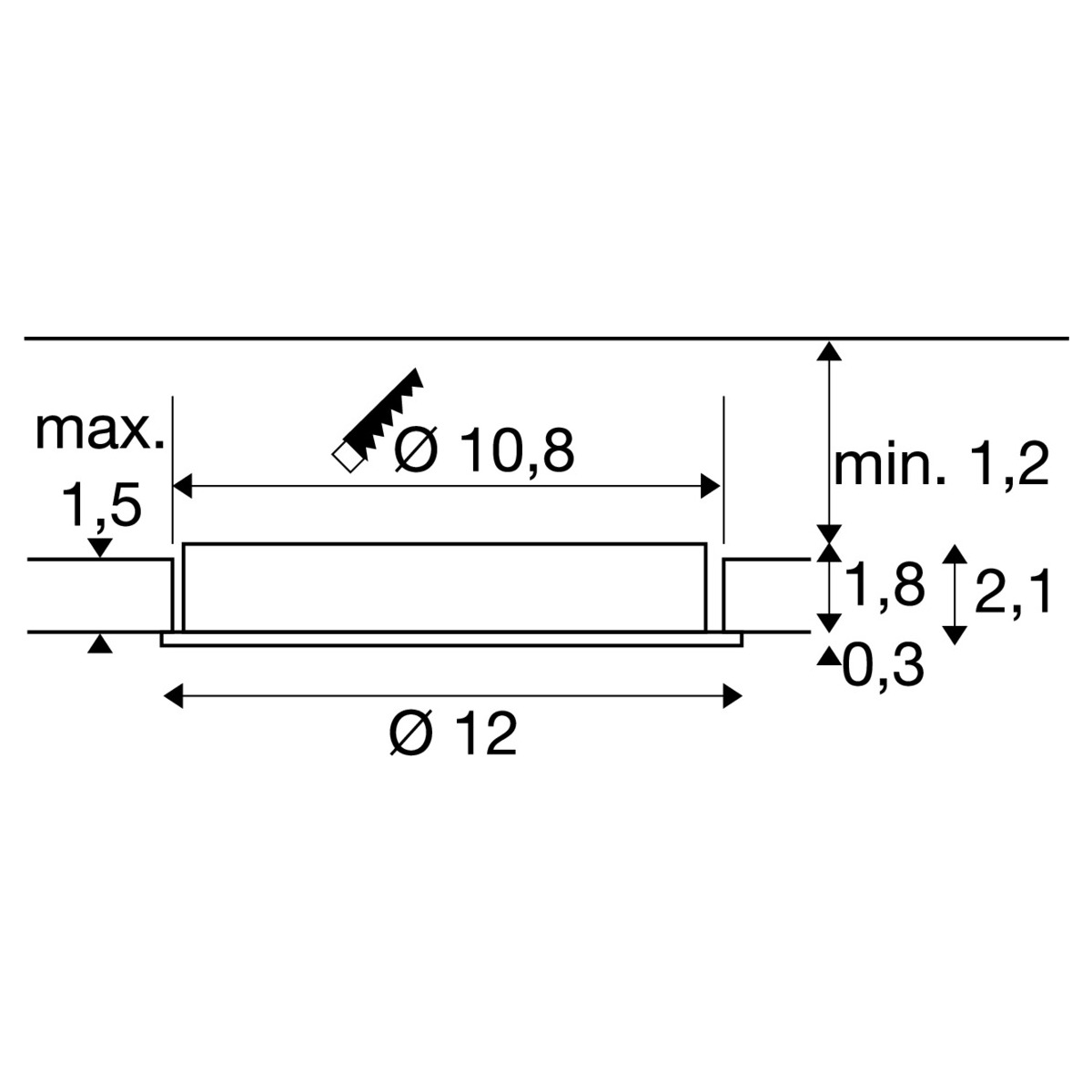

Installation diameter: 10.5 cm
Installation depth: 3 cm

Shape of cut-out: round
Assembly details: Ceiling
electrical power: 7 W
Primary nominal voltage: 220-240V V ~ 50/60Hz
Secondary power / secondary voltage: 350 mA
Dimmable: Yes
Dimming technology: DALI 2
Inrush current level: 0.785 A
Inrush current duration: 41 µs
Number of lights on LS B16A: 248
Number of lights on LS C16A: 248
Weighted consumption: 7 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_10468
Ambient temperature: 40 °C
Risk group: 1
Net weight: 0.263 kg

Product information

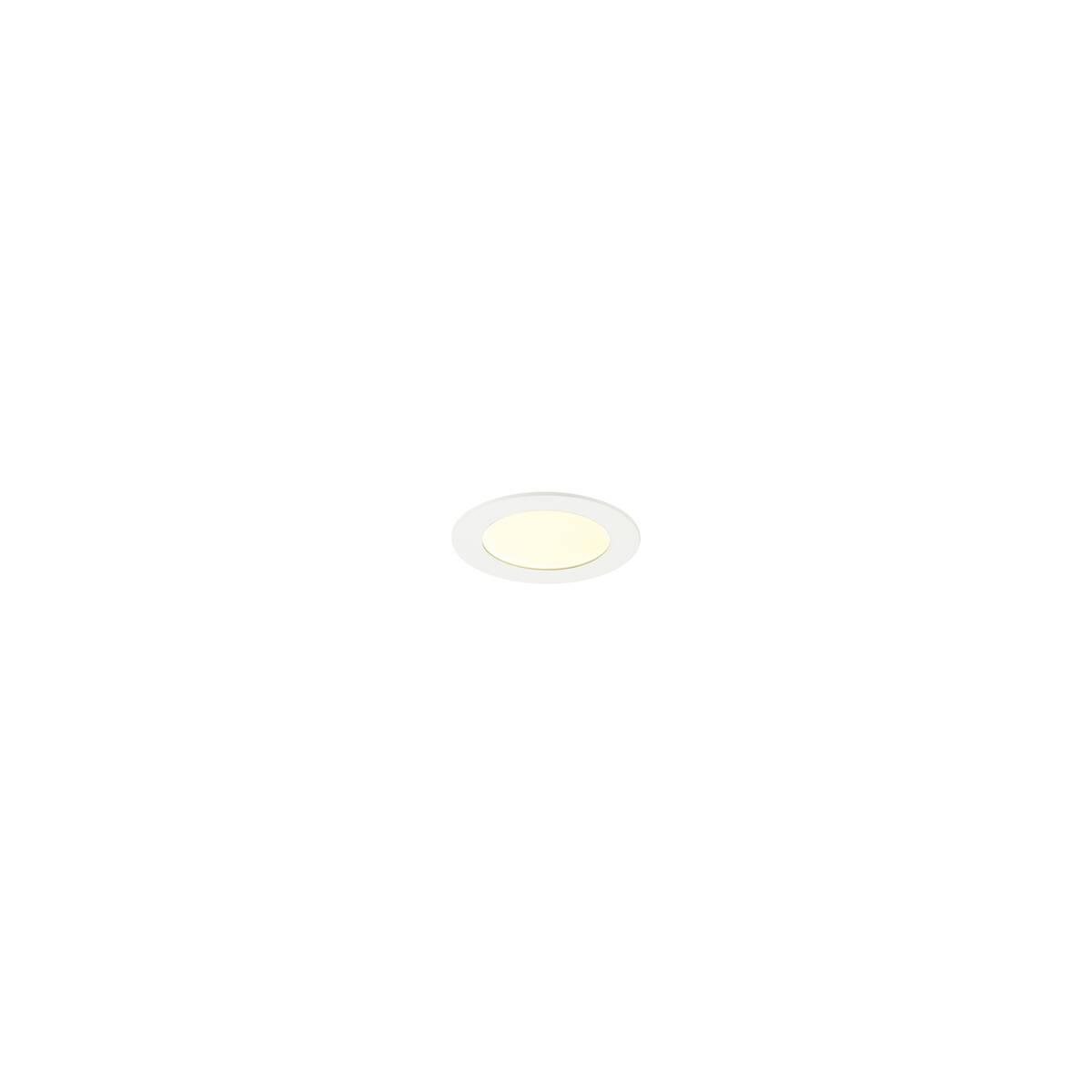

The recessed ceiling luminaire from the SENSER 2.0 12 product line is designed for installation in suspended ceilings and is suitable for indoor areas with standard protection requirements. It features a round shape with a diameter of 12 cm and a height of 2.4 cm. The housing is made of aluminium, combined with a polycarbonate diffuser. The luminaire is equipped with LED technology, providing a luminous flux of 600 to 650 lumens and a lifespan of up to 50,000 hours. Control is via DALI dimming, allowing flexible light adjustment. With an IP20 protection rating and an impact resistance of IK02, the luminaire is suitable for use in protected indoor environments.
