PL-BEAM PRO S

NEW

Color

Half beam angle

Colour temperature

Luminous Flux

Select the item now with matching

Available as of 19/10/2026

Art. no.: 1012115

Delivery information

Delivery time: 1–3 working days

Technical overview

23
50000 h
IP66
IK08

DALI dimming: This product is dimmable using a DALI dimmer.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Technical data

Product name: PL-BEAM PRO S
EAN Number: 4024163339490
Colour: anthracite
Assembly: Surface
Luminous Flux: 1300 lm
Colour temperature: 2200 Kelvin
CRI: 80
Half beam angle: 23 °
Height: 16.5 cm
Diameter: 12.4 cm
Shape: cylindrical
Material: Aluminum
IP Code: IP66
Shock resistance category: IK08
Shock resistance: 5 joule
electrical power: 12 W

Primary nominal voltage: 220-240V ~ 0/50/60Hz
Secondary power / secondary voltage: 600 mA
Dimmable: Yes
Dimming technology: DALI 2
Inrush current level: 65 A
Inrush current duration: 200 µs
Number of lights on LS B16A: 15
Number of lights on LS C16A: 24
Weighted consumption: 12 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_10380
Ambient temperature: 50 °C
Glass temperature (light emission): 60 °C
Risk group: 1
Net weight: 1.34 kg
BIG WHITE Page: 734

Product information

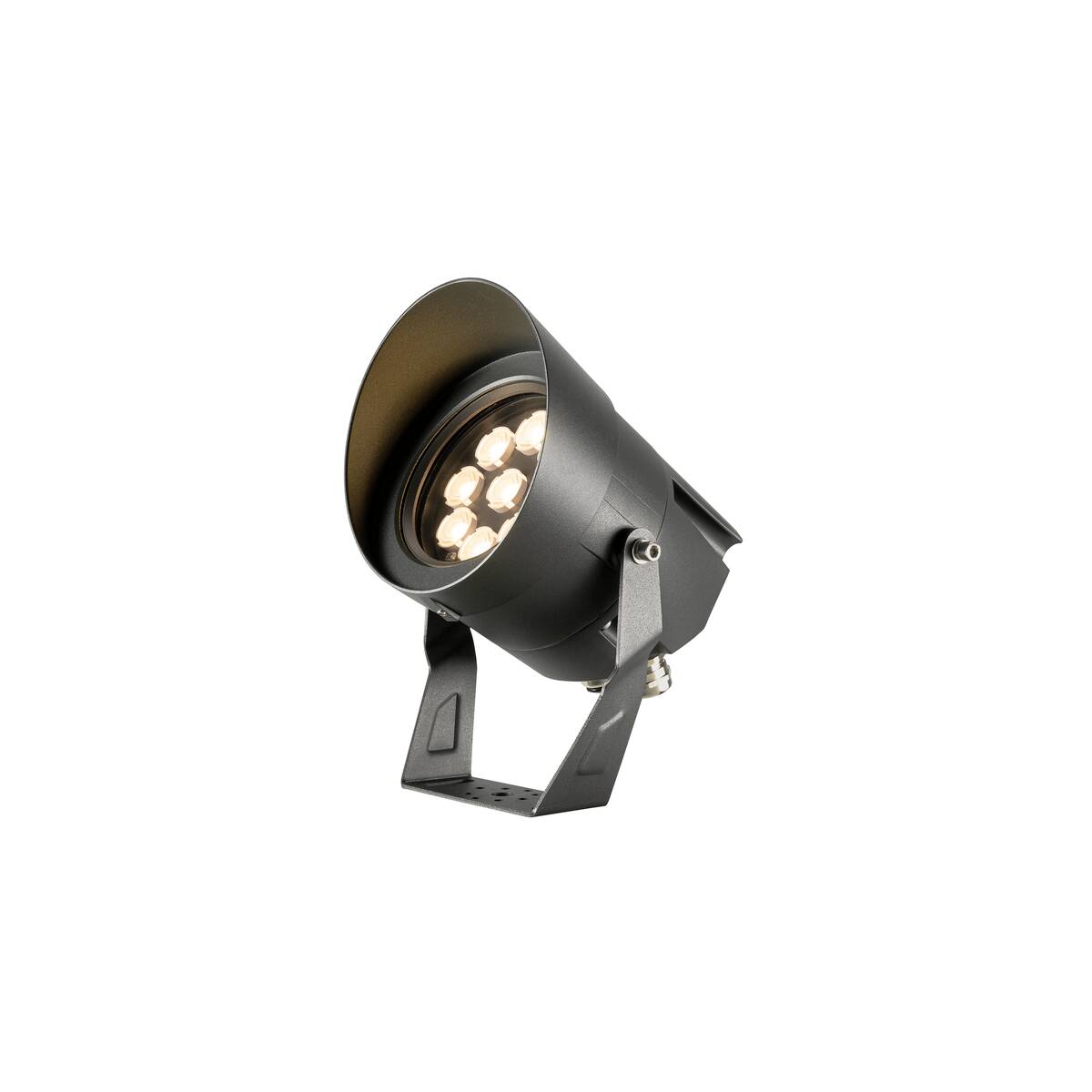

The LED spotlight PL-BEAM PRO S, SP, DALI is designed for wall and ceiling mounting and is suitable for use in demanding indoor and outdoor areas. With a luminous flux of 1300 lumens at 12 watts and a warm white colour temperature of 2200 K, it provides focused illumination with a beam angle of 23°. The housing is made of aluminium and glass, ensuring a robust construction. The luminaire is equipped with DALI 2 dimming technology, allowing flexible control. It features an IP66 protection rating and IK08 impact resistance, making it resistant to dust, jet water, and mechanical impacts. With dimensions of 12.4 cm diameter and 16.5 cm height, the spotlight is compact and versatile in mounting. The declared service life is 50,000 hours.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

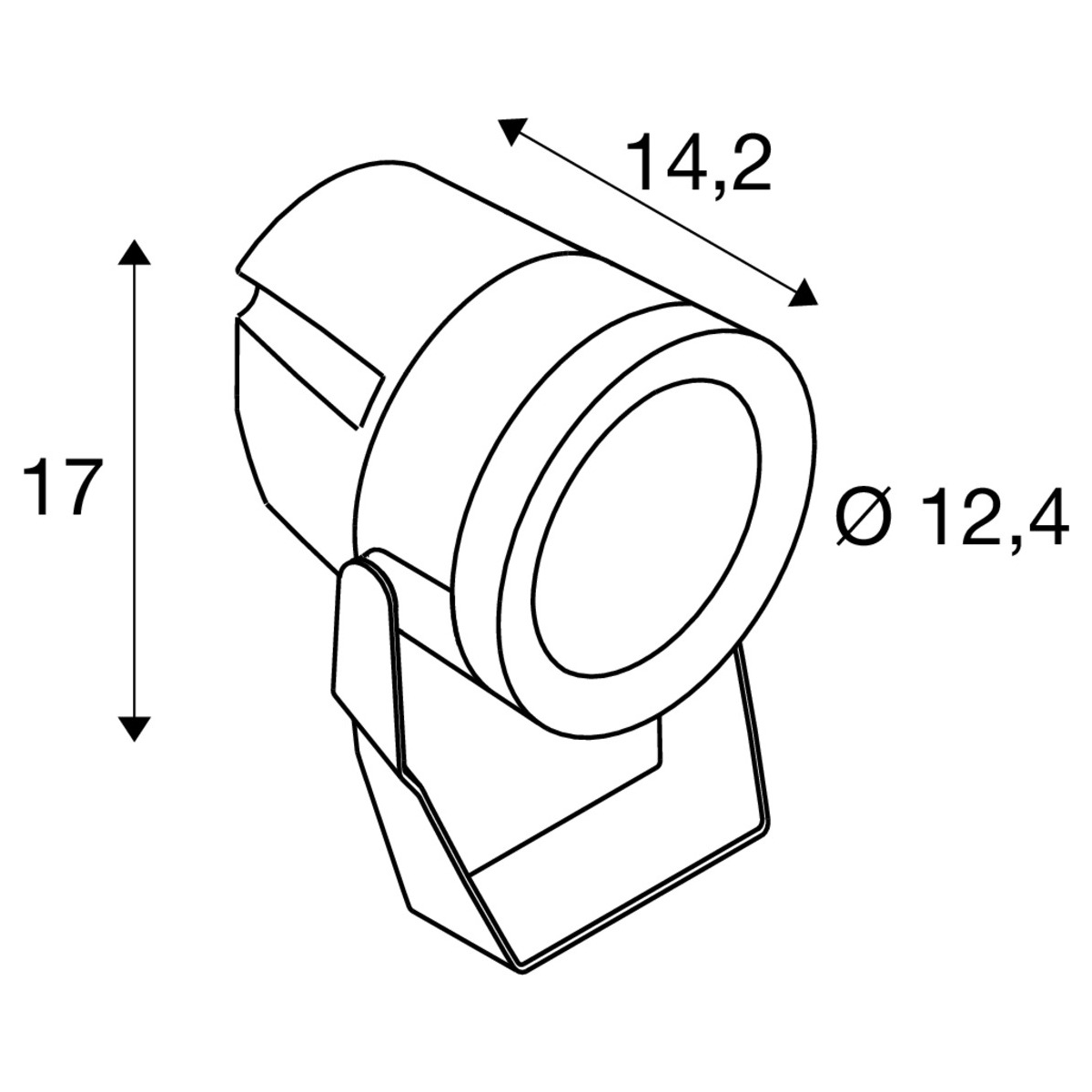

Dimensional drawing (JPG)

Documents

CE Declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download ROLF Zip file (ZIP)

Download ULD file (ULD)
