LINIUS 150

NEW

Color

Colour temperature

Dispatch on 27/10/2026

Art. no.: 1011947

Delivery information

Delivery time: 1–3 working days

Made to order

Technical overview

90 °
90 °
50000 h
IP20
IK02
200 cm

Trailing edge phase dimmer: Dieses Produkt ist dimmbar über einen Phasenabschnittsdimmer.
Indirect lighting - beam angle: This value describes the beam angle of the indirect lighting. The smaller the angle, the more concentrated the light will be.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
Pendant cable length: Pendant cable length in cm.

Technical data

Product name: LINIUS 150
EAN Number: 4024163337854
Colour: brass
Assembly: Recessed
Luminous Flux: 3350 lm
Colour temperature: 2700 Kelvin
CRI: 90
Half beam angle: 90 °
CCT Switch: No

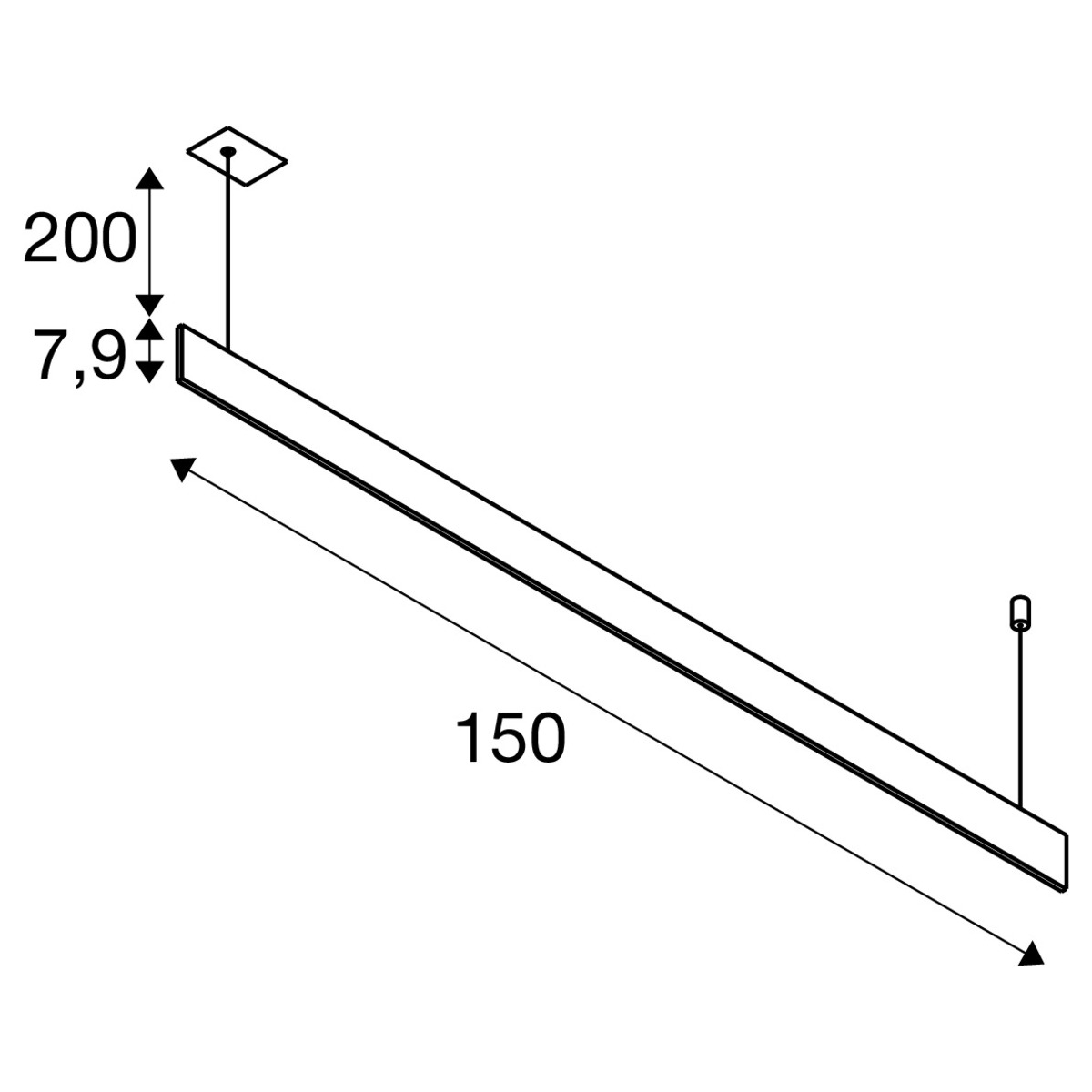

Length: 150 cm
Width: 0.76 cm
Height: 7.9 cm
Pendant length: 200 cm
Shape: rectangular
Material: Aluminum
IP Code: IP20
Shock resistance category: IK02
Installation depth: 15 cm

Shape of cut-out: round
Assembly details: Ceiling
electrical power: 40 W
Primary nominal voltage: 220-240V ~ 0/50/60Hz
Secondary power / secondary voltage: 1050
Dimmable: Yes
Dimming technology: trailing edge
Inrush current level: 15 A
Inrush current duration: 10 µs
Number of lights on LS B16A: 64
Number of lights on LS C16A: 128
Weighted consumption: 40 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_10390
Ambient temperature: 45 °C
Risk group: 0
Net weight: 2.3 kg
BIG WHITE Page: 237

Product information

The pendant luminaire from the LINIUS product line is designed for ceiling installation and is suitable for indoor use with an IP20 protection rating. It features a rectangular canopy shape with a round cut-out, and the housing is made of aluminium. With a length of 150 cm, a width of 0.76 cm, and a height of 7.9 cm, it offers a slim design. The luminaire delivers a luminous flux of 3350 lumens with a service life of 50,000 hours. Dimming is carried out via phase-cut control (trailing edge). The impact resistance is rated IK02. The pendant length is 200 cm, allowing for flexible mounting options. This technical specification makes the luminaire suitable for professional installations in offices, retail spaces, or public buildings.
