PANEL 60 DALI

Color

Colour temperature

Luminous Flux

A successor to this product is available

10+ in Stock

Art. no.: 1003047

Delivery information

Delivery time: 1–3 working days

Made to order

Technical overview

110 °
30000 h
IP20
22
200 cm

DALI dimming: This product is dimmable using a DALI dimmer.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
UGR ≤: UGR= Unified Glare Rating. Indicates the standardised value of psychological glare. The smaller the value is, the lower the glare.
Pendant cable length: Pendant cable length in cm.

Technical data

Product name: PANEL 60
EAN Number: 4024163232371
Colour: gray
Luminous Flux: 3350 lm
Colour temperature: 4000 Kelvin
CRI: 80
Half beam angle: 110 °
UGR ≤: 22
CCT Switch: No
Height: 1.3 cm
Diameter: 60 cm
Pendant length: 200 cm
Material: Aluminium
IP Code: IP20

electrical power: 43 W
Primary nominal voltage: 120-277V V ~ 50/60Hz
Secondary power / secondary voltage: 1000 mA
Dimmable: Yes
Dimming technology: DALI 2
DALI capable: Yes
Inrush current level: 30 A
Inrush current duration: 30 µs
Weighted consumption: 43 kWh/1.000h
Service life: 30000 h
Energy efficiency class: LS_2336
Ambient temperature: 40 °C
Net weight: 4.523 kg

Product information

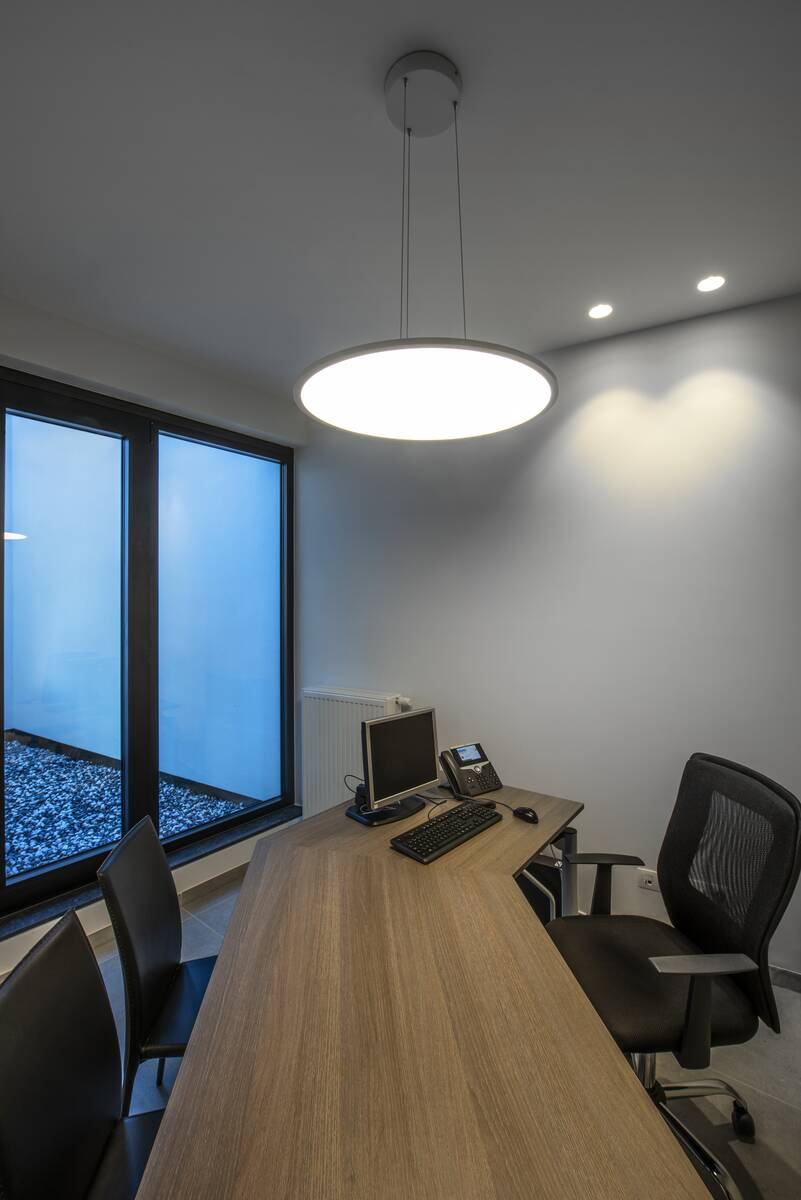

The PANEL 60 DALI pendant is available in several different light colours and impresses with its ultra-flat design and powerful, dimmable LED modules. The aluminium frame is fitted with an acrylic glass cover which provides homogeneous and glare-free illumination. The built-in DALI-compatible operating device makes direct connection to a mains power supply of 100V-240V possible.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

Removal instructions (PDF)

Mounting Dimensions Drawing (PDF)

Maßzeichnung (JPG)

Documents

CE Declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download ROLF file (ROLF)

Download ULD file (ULD)

3D Daten

Download 3DS file (3DS)

Download DWG file (DWG)

Download MTL file (MTL)

Download OBJ file (OBJ)

Download SKP file (SKP)
