SENSER 12

Colour temperature

Length

Select the item now with matching

RRP€29.50Prices for business customers excl. VAT

sold out

Art. no.: 1003011

Delivery information

Delivery time: 1–3 working days

Technical overview

110 °
50000 h
IP20
IK02
29

Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
UGR ≤: UGR= Unified Glare Rating. Indicates the standardised value of psychological glare. The smaller the value is, the lower the glare.

Technical data

Product name: SENSER 12
EAN Number: 4024163232012
Colour: white
Luminous Flux: 420 lm
Colour temperature: 3000 Kelvin
CRI: 90
Half beam angle: 110 °
UGR ≤: 29
CCT Switch: No
Operating efficiency (LOR): 0.61
Length: 11.5 cm
Width: 11.5 cm
Height: 2 cm
Material: Aluminium

IP Code: IP20
Shock resistance category: IK02
Shock resistance: 0.2 joule
Installation length: 10.5 cm
Installation width: 10.5 cm
Installation depth: 3 cm
Shape of cut-out: square
Secondary power / secondary voltage: 200 mA
DALI capable: No
Service life: 50000 h
Energy efficiency class: LS_2927
Risk group: 1
Net weight: 0.13 kg
BIG WHITE Page: 103

Product information

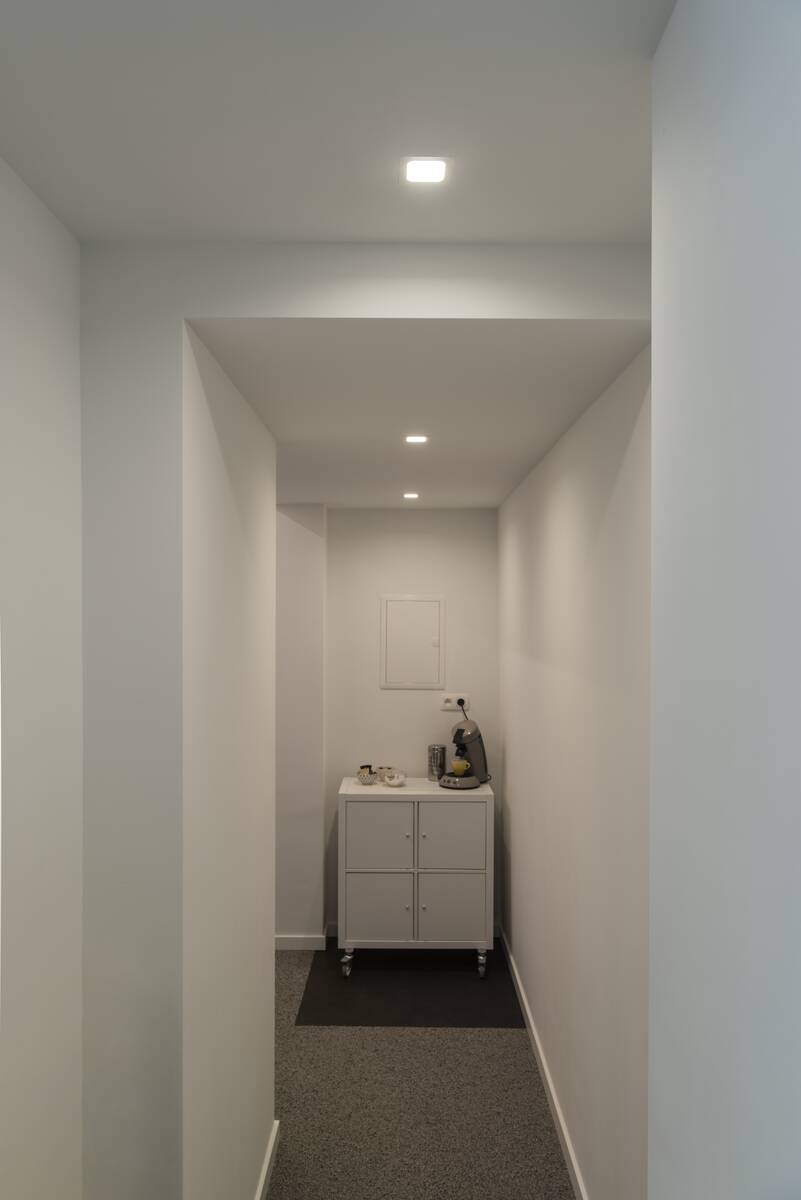

The SENSER recessed fitting made from aluminium is available in white and silver-grey, and with a round or square shade. The rigid Premium LED insert produces homogeneous base illumination over a wide area thanks to its extensive beam angle. If you are looking for a recessed ceiling light with a shallow installation depth, SENSER is just the job.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

Removal instructions (PDF)

Maßzeichnung (JPG)

Documents

CE Declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download ROLF file (ROLF)

Download ULD file (ULD)
