LIPSY 50 Dome

Luminous Flux

Diameter

RRP€124.00Prices for business customers excl. VAT

250+ in Stock

Art. no.: 1002022

Delivery information

Delivery time: 1–3 working days

Technical overview

120 °
50000 h
IP44
IK02

Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
CCT switch: By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

Technical data

Product name: LIPSY® 50
EAN Number: 4024163222402
Colour: white
Luminous Flux: 2500/2700 lm
Colour temperature: 3000/4000 Kelvin
CRI: 80
Half beam angle: 120 °
CCT Switch: Yes
Height: 12.4 cm
Diameter: 40 cm
Material: Aluminium
IP Code: IP44
Shock resistance category: IK02
electrical power: 20 W

Primary nominal voltage: 220-240V V ~ 50/60Hz
Secondary power / secondary voltage: 500 mA
DALI capable: No
Inrush current level: 30 A
Inrush current duration: 300 µs
Weighted consumption: 20 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_2171
Ambient temperature: 40 °C
Net weight: 0.994 kg
BIG WHITE Page: 426

Product information

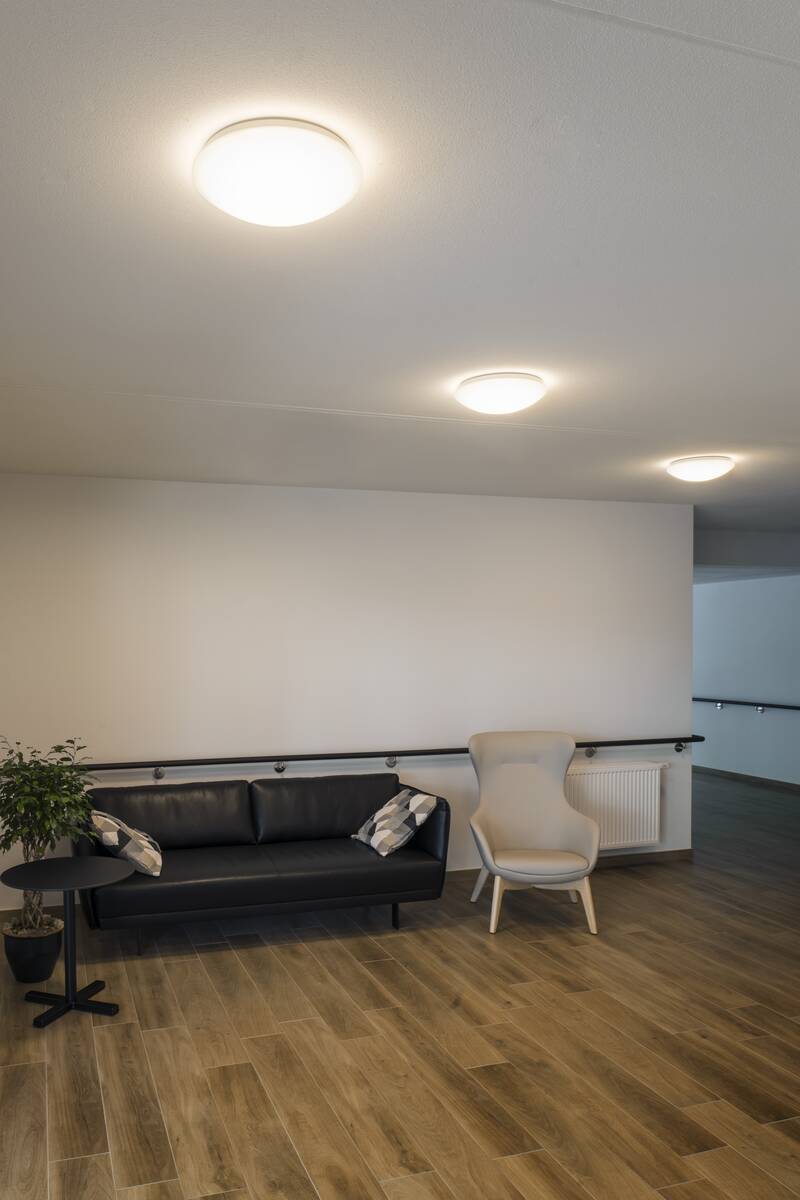

With their timeless and discreet design, the LIPSY DOME series of wall and ceiling lights are a popular lighting solution for a wide range of applications. The steel and acrylic glass luminaires come in a variety of housing sizes. The wide beam characteristic creates homogeneous lighting in combination with the powerful LED module. The built-in driver makes direct connection to a 230V mains voltage supply possible. The light colour of the product can be switched between 3000 K and 4000 K.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

Removal instructions (PDF)

Mounting Dimensions Drawing (PDF)

Maßzeichnung (JPG)

Documents

CE Declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download ROLF file (ROLF)

Download ROLF Zip file (ZIP)

3D Daten

Download 3DS file (3DS)
