KINI

RRP€103.00Prices for business customers excl. VAT

250+ in Stock

Art. no.: 1000833

Optionally available

Delivery information

Delivery time: 1–3 working days

Technical overview

60
30000 h
IP65
IK02

Leading and trailing edge phase dimmer: This product is dimmable using a trailing and leading edge phase dimmer.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Technical data

Product name: KINI
EAN Number: 4024163191258
Colour: white
Luminous Flux: 850 lm
Colour temperature: 3000 Kelvin
CRI: 80
Half beam angle: 60 °
CCT Switch: No
Different light outlets: 1
Height: 6.5 cm
Diameter: 10.8 cm
Material: Aluminium
IP Code: IP65
Shock resistance category: IK02
Installation diameter: 9 cm
Installation depth: 8.5 cm

Shape of cut-out: round
electrical power: 12 W
Primary nominal voltage: 220-240V V ~ 50/60Hz
Secondary power / secondary voltage: 260 mA
Dimmable: Yes
Dimming technology: Leading edge, trailing edge
DALI capable: No
Weighted consumption: 12 kWh/1.000h
Service life: 30000 h
Energy efficiency class: LS_2175
Ambient temperature: 40 °C
Net weight: 0.35 kg
BIG WHITE Page: 115

Product information

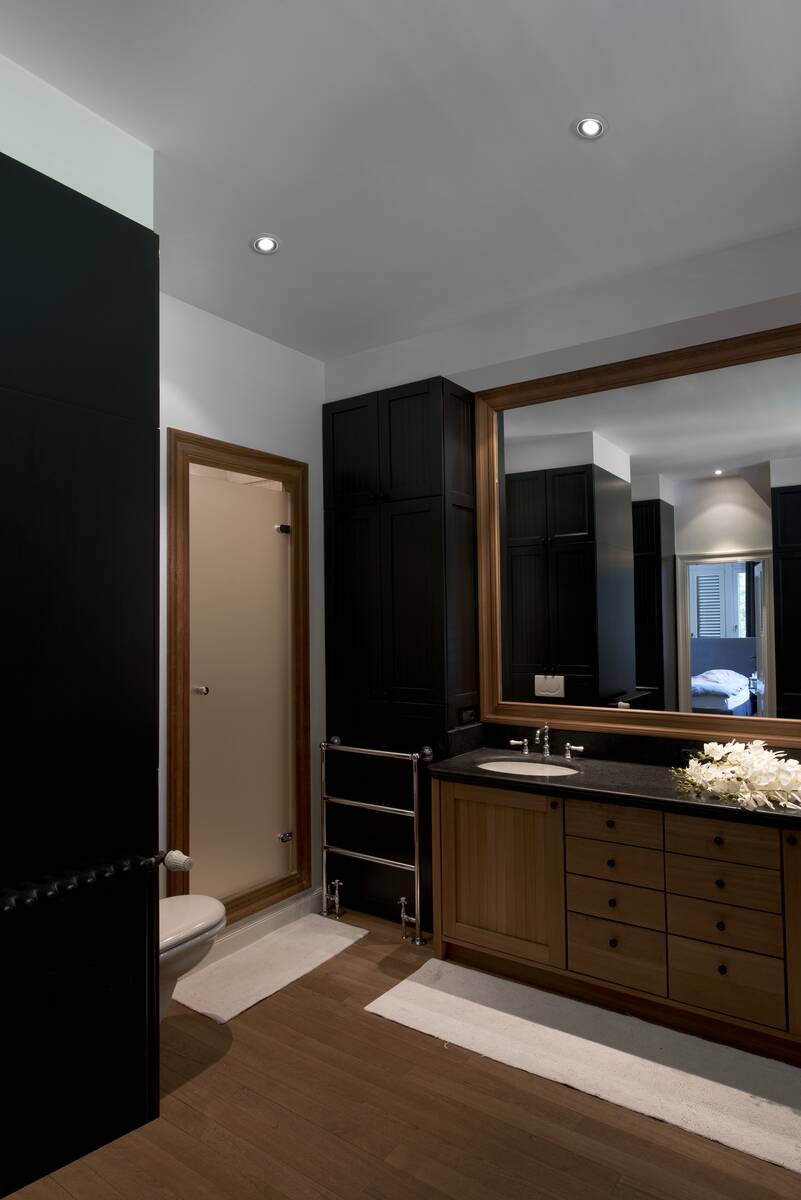

The dimmable KINI recessed ceiling light impresses with its simple appearance. Rated IP65 it can be used outdoors or in damp areas. It is available in white with a round shape. Equipped with a powerful, warm white LED in a swivelling mount, and the LED driver included in the scope of supply, the set can be used in any lighting situation. The electrical connection is made directly to the 230V mains supply.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

Removal instructions (PDF)

Maßzeichnung (JPG)

Documents

CE Declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download ROLF file (ROLF)

Download ULD file (ULD)

FIND A DIMMER. GOOD COMBINATION.

Please note the minimum load of the dimmers used.

Berker 2873
Niko 310-0190X
LK Fuga LED Dimmer 180 Touch
Busch Jäger (6523U)
Eltako EUD 61 NPN-UC
Legrand PRO21 LED Dimmer 775659
