25000 h

IP 20

SUPROS

Trailing edge phase dimmer This product is dimmable using a trailing edge phase dimmer.

Gimballed This product can be swivelled and pivoted.

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Lighting family This product belongs to an SLV light family

To the technical details

SUPROS 78

ceiling light, LED, 3000K, round, black, 60° lens, More

25000 h

IP 20

SUPROS

Item no.: 116330

Discontinued model

RRP £145.07 Price only for commercial customers, plus VAT.

100+ in Stock

Description

The SUPROS luminaire impresses with its multitude of possible applications, excellent LED technology and its harmonious design. With its very high luminous flux, the SUPROS product family is ideally suited to replace power-hungry, conventional lighting installations. The wide-area reflector included in the delivers can be replaced by reflectors with narrower beam angles which are optionally available. This can be done without the need for tools. With the factory-installed LED driver, all the luminaires in the series are suitable for direct connection to the 230V mains supply.

Trailing edge phase dimmer This product is dimmable using a trailing edge phase dimmer.

Gimballed This product can be swivelled and pivoted.

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Lighting family This product belongs to an SLV light family

To the technical details

Technical data

Product name

SUPROS 78

BIG WHITE Page

271

Colour

black

Material

Aluminium

electrical power

12 W

Lumen/wattage

58.33 lm/W

Luminous Flux

700 lm

Colour temperature

3000 Kelvin

Beam angle

60 °

CRI

Different light outlets

Dimmable

Yes

Dimming technology

trailing edge

Protection category

IP Code

IP 20

Assembly

Surface

Assembly details

Ceiling

Shape

cylindrical

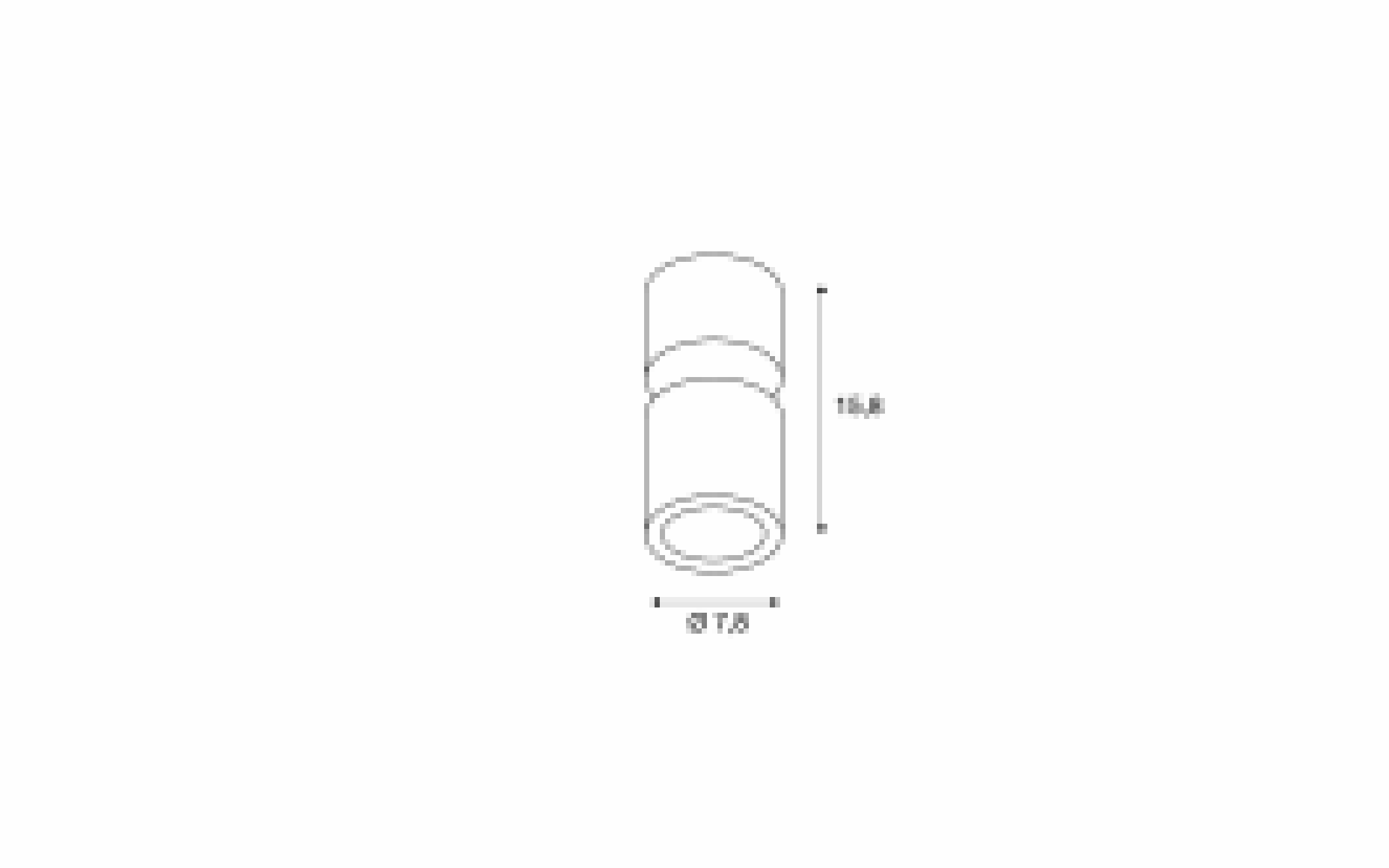

Height

15.8 cm

Diameter

7.8 cm

Rotating or tilting

tiltable

Vertical tilting range

60 °

Horizontal rotation range

350 °

Light outlet

direct

Luminous intensity distribution

rotational symmetric

Colour consistency

6 SDCM

Primary nominal voltage

220-240V ~50/60Hz

Secondary power / secondary voltage

250mA

Operational cycles

product.attribute.light_source_id_sp_collection

Net weight

0.61 kg

Rated value luminous efficacy

58.33 lm/W

Weighted consumption

12 kWh/1.000h

LXXBXX data

L70B50

Service life

25000 h

product.attribute.inrush_current_sp_collection

product.attribute.inrush_current_time_sp_collection

product.attribute.measured_variable_strobe_effects_svm_sp_fixture_data_new

0.09

Manual (pdf)

CE declaration (pdf)

Datasheet (pdf)

FIND A DIMMER. GOOD COMBINATION.

Compatible dimmers

GIRA 245010
BLUETOOTH DIMMER MODULE
Niko 310-0190X
LK Fuga LED Dimmer 180 Touch
Busch Jäger (6523U)
Merten MEG5134-0010
Eltako EUD 61 NPN-UC
Legrand PRO21 LED Dimmer 775659

Please note the minimum load of the dimmers used.

Because of the many different products, it is not always easy to find the best combination. Our overview should help you to find the right dimmer.

We continuously update and extend the list, so that the latest combinations and any new products are always suggested to you.
