SPHERA

pendant, LED, 2700K, round, white, frosted acrylic glass, Ø 75cm, More

IP 20

SPHERA

Diameter:

Lumen:

Reset selection

Item no.: 133351

Price on request

Sold out

Description

The SPHERA 75 pendant impresses with a clear design and an appealing contrast of the aluminium and acrylic glass materials used. Exclusively designed by Carsten Witsch, the elegant, dimmable pendant is characterised by its elegant high-gloss lacquer finish. Its integrated Premium LED gives pleasant lighting effects, and its built-in LED driver allows direct connection to 230V mains supply.

Trailing edge phase dimmer This product is dimmable using a trailing edge phase dimmer.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

UGR ≤ UGR= Unified Glare Rating. Indicates the standardised value of psychological glare. The smaller the value is, the lower the glare.

Lighting family This product belongs to an SLV light family

To the technical details

Technical data

Product name

SPHERA 75

Colour

white

Material

Aluminium

electrical power

15 W

Rated value luminous efficacy

80 lm/W

Luminous flux

1200 lm

Colour temperature

2700 Kelvin

Beam angle

120 °

CRI

UGR ≤

Different light outlets

Dimmable

Yes

Dimming technology

trailing edge

Protection category

IP Code

IP 20

Assembly

Surface

Assembly details

Ceiling

Shape

round

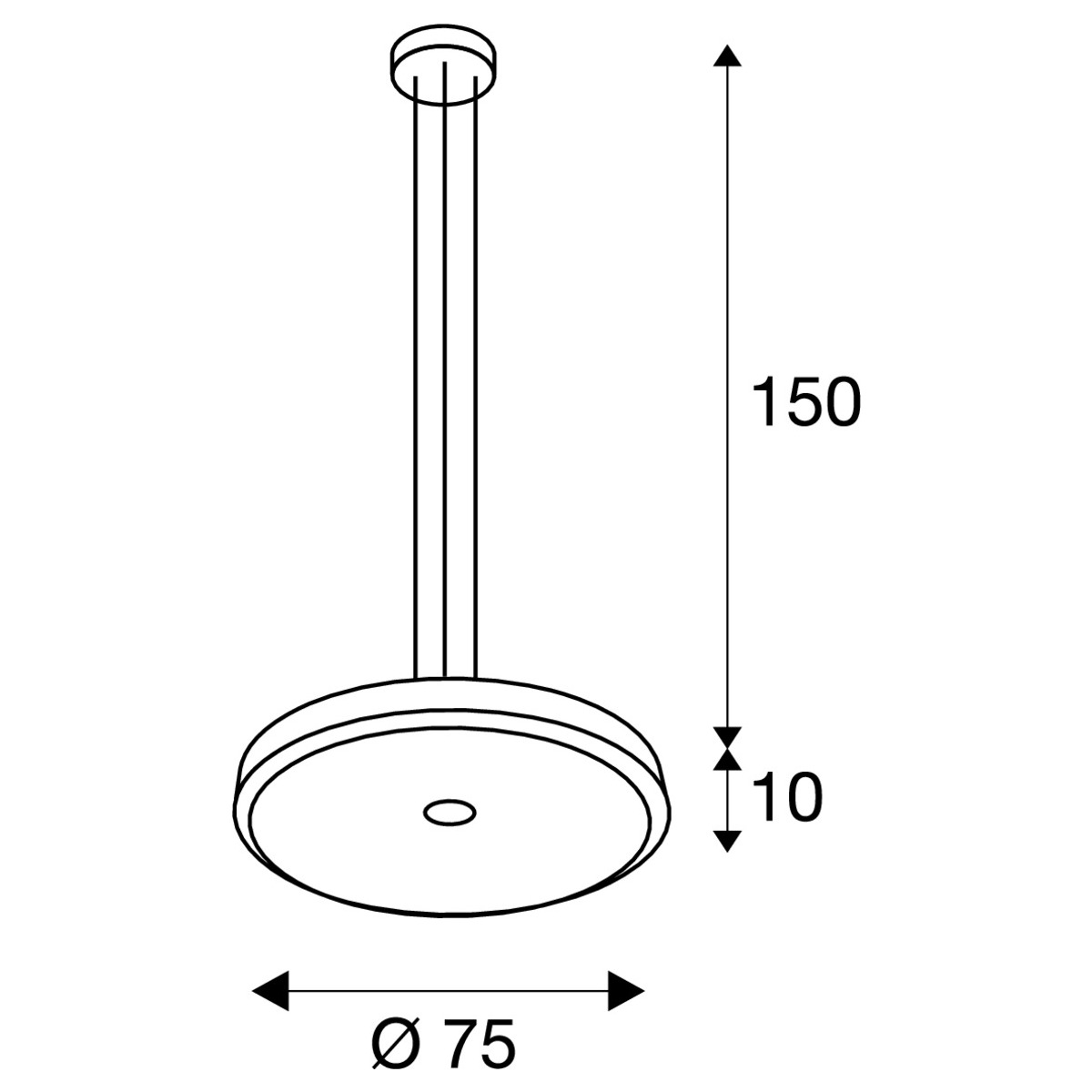

Height

10 cm

Diameter

75 cm

Pendant length

150 cm

Light outlet

direct

Luminous intensity distribution

rotational symmetric

Colour consistency

6 SDCM

Primary nominal voltage

220-240V ~50/60Hz

Secondary power / secondary voltage

500mA

Operational cycles

Net weight

6.95 kg

Weighted consumption

15 kWh/1.000h
