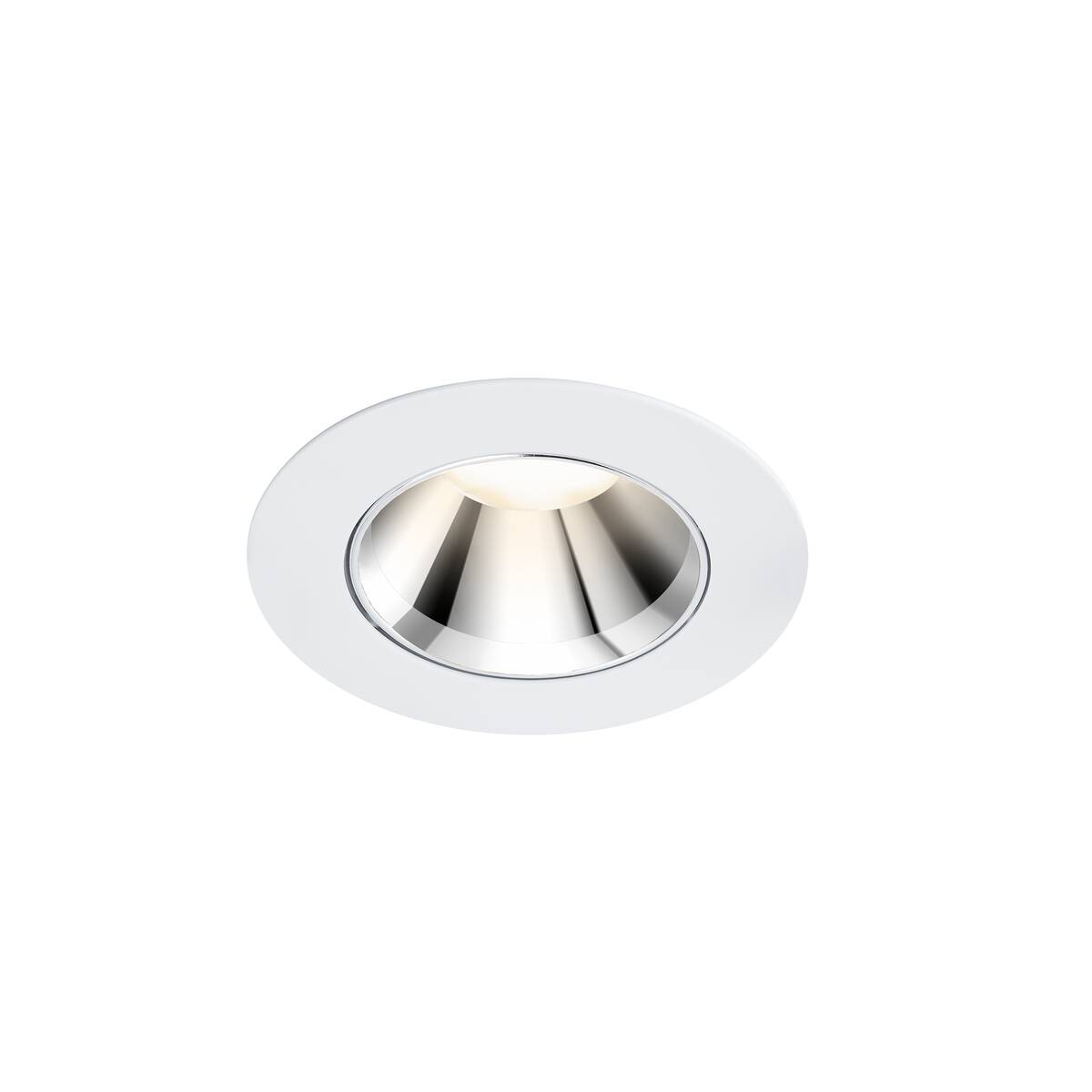

RILO DL

LED indoor recessed ceiling light, white/chrome, 3000/4000K, 14W, More
Diameter:

Item no.: 1001974

Sold out
Not available in the EU
This product is not available in the EU

Description

RILO series LED recessed ceiling lights impress with their innovative technology. The light colour can be adjusted via a switch during installation, and the UGR value is less than 19 and the Cri is greater than 90! The luminaire, which is available with a white housing, is connected directly to the 230V mains voltage supply.
Technical overview

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

UGR ≤ UGR= Unified Glare Rating. Indicates the standardised value of psychological glare. The smaller the value is, the lower the glare.

Lighting family This product belongs to an SLV light family

CCT switch By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

Technical data

Product name
RILO CC
Colour
white
Material
Aluminium
electrical power
13 W
Luminous Flux
850 lm
Beam angle
60 °
CRI
90
UGR ≤
19
CCT switch
Yes
Protection category
I
IP Code
IP 20
Assembly
Recessed
Assembly details
Ceiling
Shape
round
Height
8.2 cm
Diameter
14.5 cm
Shape of cut-out
round
Installation depth
9 cm
Light outlet
direct
Luminous intensity distribution
rotational symmetric
Colour consistency
4 SDCM
Secondary power / secondary voltage
180mA
Net weight
0.28 kg
Weighted consumption
13 kWh/1.000h
LXXBXX data
L70B50
Service life
25000 h
Manual (pdf)
CE declaration (pdf)
Removal instructions (pdf)
Datasheet (pdf)
