BIG NAILS 50 POLE

LED outdoor floor stand, stainless steel 316, IP44, 8.5W, More
Height:

Item no.: 1001997

Sold out

Description

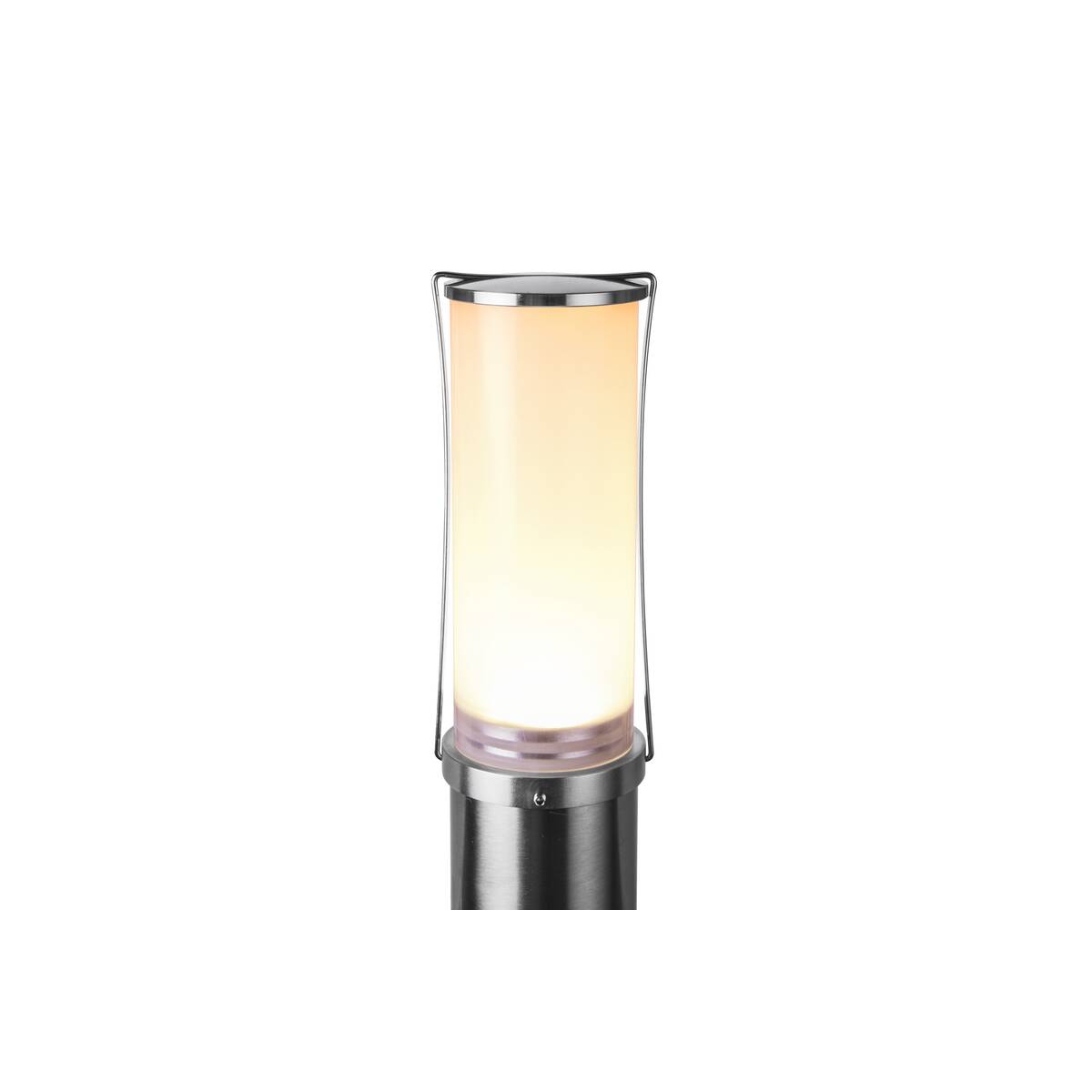

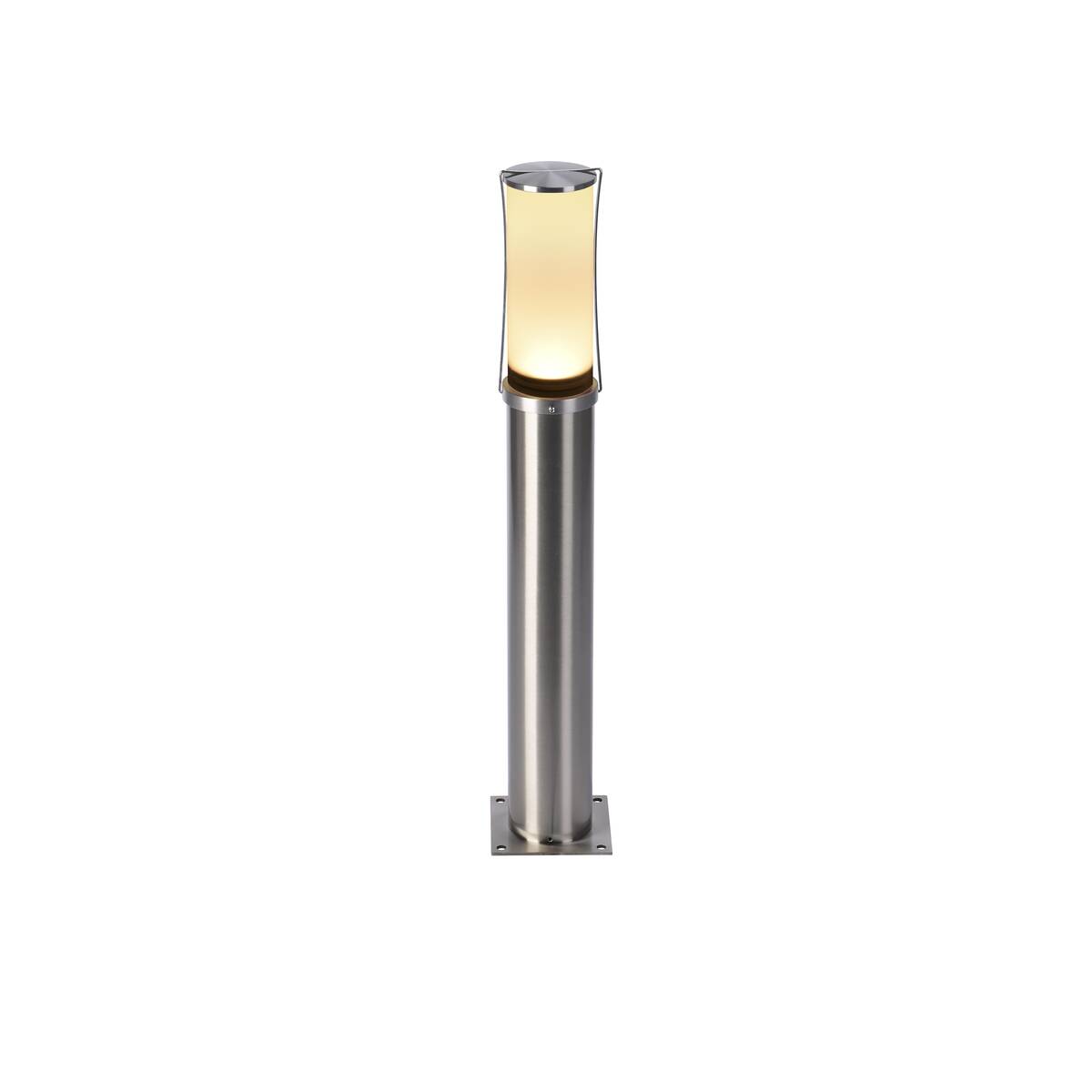

With the stainless steel BIG NAILS LED floor stand, the opalescent polycarbonate illumination surface is enclosed by a stainless steel cap. It is suitable for use outdoors thanks to its IP44 protection class. An earth spike is available as an option for simplified installation. The electrical connection of the luminaire, which comes in two sizes, is directly to the 230V mains supply. The BIG NAILS series also contains wall lights and can therefore be used universally.
Technical overview

Average lifespan in h The average lifespan of a lightbulb or light source in hours.

IP protection rating The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

IK impact resistance rating The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.

Light source can be replaced by a specialist The (included) light source can only be replaced by a specialist.

Lighting family This product belongs to an SLV light family

Technical data

Product name
BIG NAILS 50
Colour
stainless steel
Material
Stainless steel 316
electrical power
9 W
Lumen/wattage
53.33 lm/W
Luminous Flux
480 lm
Colour temperature
3000 Kelvin
CRI
80
Protection category
I
IP Code
IP 44
Assembly
Surface
Assembly details
Ground
Ground with Acc.
Shape
cylindrical

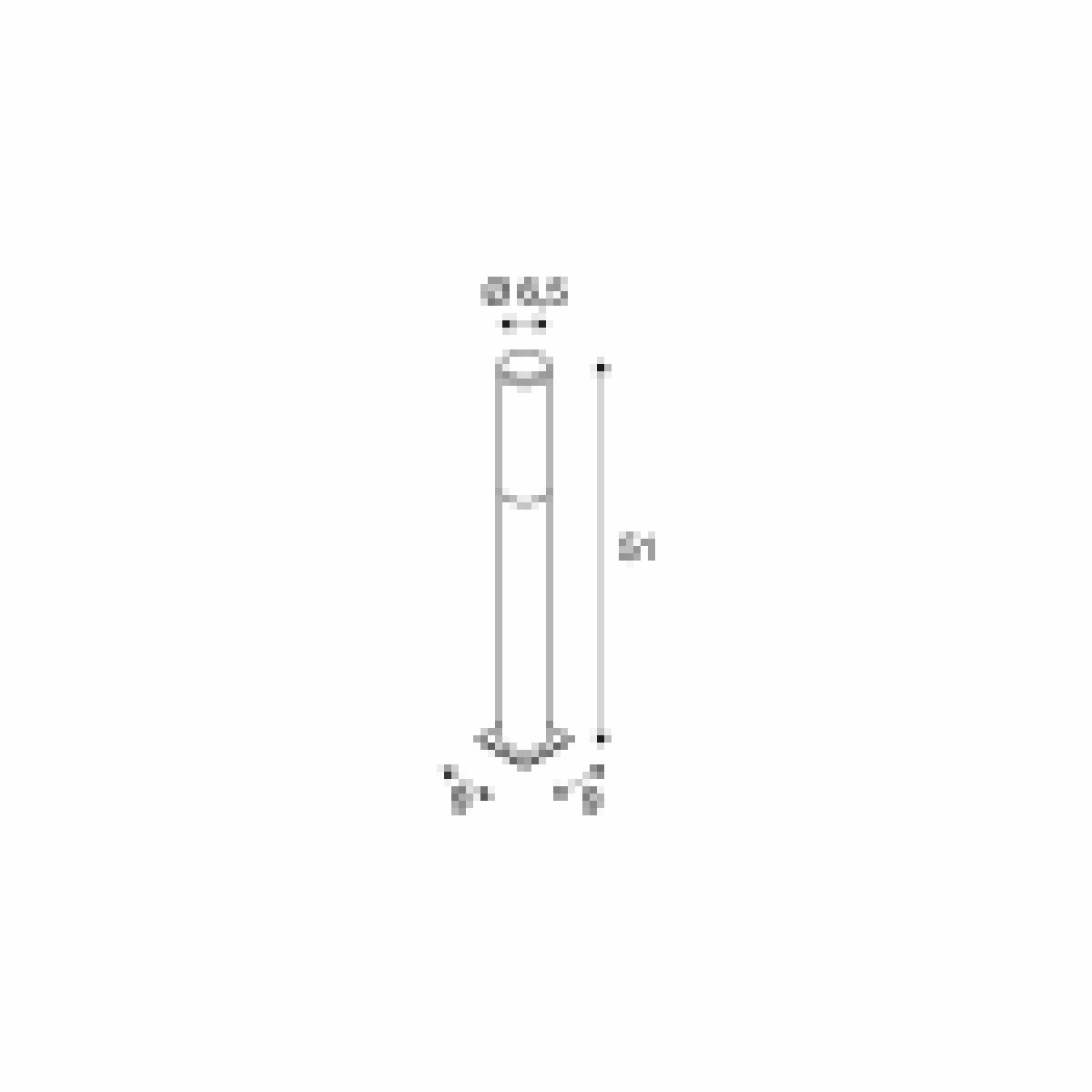

Height
50 cm
Diameter
6.5 cm
Light outlet
diffuse
Luminous intensity distribution
symmetric
Colour consistency
4 SDCM
Shock resistance category
IK05
Shock resistance
0.7 joule
Primary nominal voltage
220-240V ~50/60Hz
Ambient temperature
-20 - 40 °C
Net weight
0.95 kg
Rated value luminous efficacy
53.33 lm/W
Weighted consumption
9 kWh/1.000h
LXXBXX data
L70B50
Service life
30000 h
Manual (pdf)
CE declaration (pdf)
Assembly drawings (pdf)
Datasheet (pdf)
