RRP£386.00Price for trade customers only, excl. VAT & shipping
Sold out
Art. no.: 1006414
Delivery information
Delivery time: 1–3 working days
Technical overview
80 °
50000 h
IP50
IK02
19
DALI dimming
This product is dimmable using a DALI dimmer.
80 °
Direct lighting - beam angle
This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
50000 h
Average lifespan in h
The average lifespan of a lightbulb or light source in hours.
IP50
IP protection rating
The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK02
IK impact resistance rating
The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
19
UGR ≤
UGR= Unified Glare Rating. Indicates the standardised value of psychological glare. The smaller the value is, the lower the glare.
CCT switch
By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.
Technical data
Product name
MEDO® PRO 40
EAN Number
4024163266260
Colour
black/black
Luminous Flux
2400/2500 lm
Colour temperature
3000/4000 Kelvin
CRI
90
Beam angle
80 °
UGR ≤
19
CCT switch
Yes
Operating efficiency (LOR)
0.86
Height
9.2 cm
Diameter
38 cm
Material
Aluminium
IP Code
IP50
Shock resistance category
IK02
Shock resistance
0.2 joule
electrical power
19 W
Primary nominal voltage
220-240V V ~ 50/60Hz
Secondary power / secondary voltage
500 mA
Dimmable
Yes
Dimming technology
DALI 2, Touch
Inrush current level
26 A
Inrush current duration
151 µs
Number of lights on LS B16A
32
Number of lights on LS C16A
53
Weighted consumption
19 kWh/1.000h
Service life
50000 h
Energy efficiency class
LS_2797
Ambient temperature
45 °C
Risk group
1
Net weight
1.998 kg
Product information

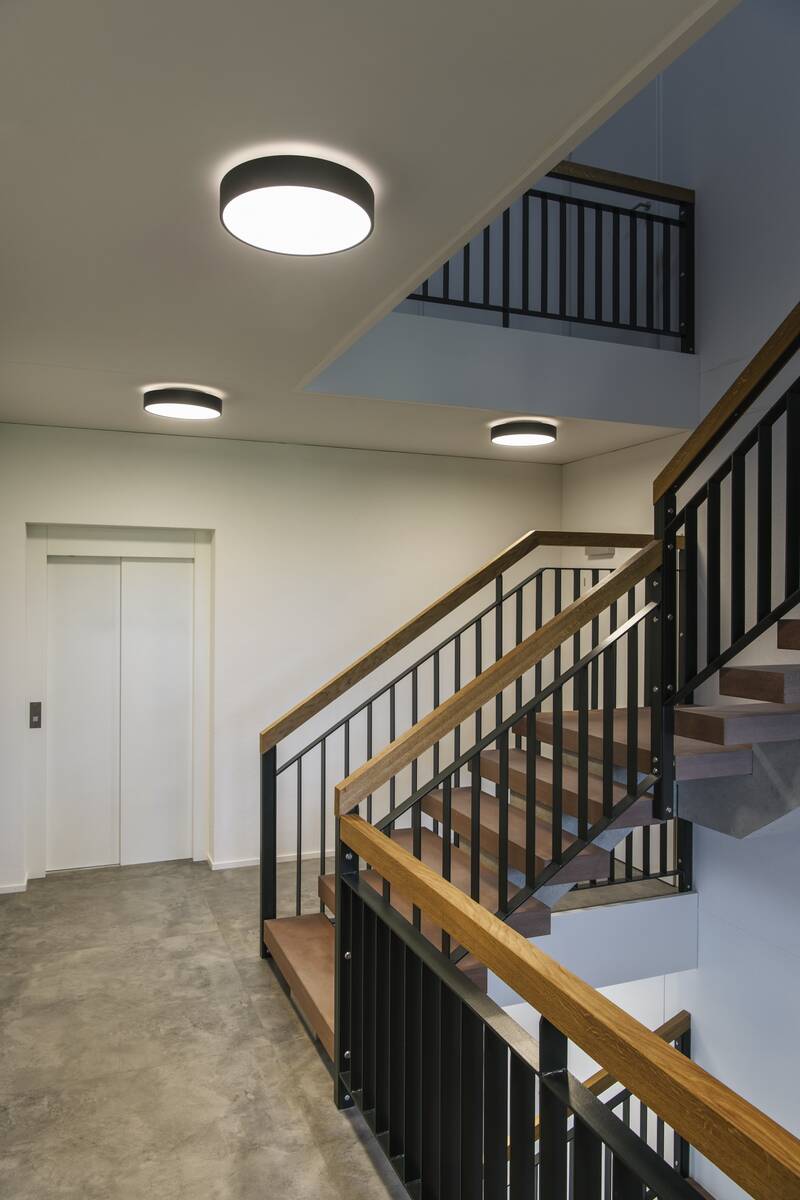

The MEDO® PRO 40 is a ROUND surface-mounted wall and ceiling luminaire suitable for indoor use. It provides a luminous flux of approximately 2400 to 2500 lumens at a power consumption of 19 watts and is available in colour temperatures of 3000 K and 4000 K. The luminaire features a UGR of under 19, ensuring glare-free lighting, as well as a beam angle of 70°. The housing is made of aluminium and steel, measuring 38 cm in diameter with a height of 9.2 cm. The protection rating is IP50, and the impact resistance corresponds to IK02. Dimming is carried out via DALI 2 and touch control.
