BATTEN 120

Select the item now with matching

RRP£57.00Prices for business customers excl. VAT

100+ in Stock

Art. no.: 1006124

Delivery information

Delivery time: 1–3 working days

Technical overview

30000 h
IP20
IK02

Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
CCT switch: By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

Technical data

Product name: BATTEN 120
EAN Number: 4024163261890
Colour: white
Luminous Flux: 1900/1960 lm
Colour temperature: 3000/4000 Kelvin
CRI: 90
CCT switch: Yes
Length: 118.55 cm
Width: 2.6 cm
Height: 3.6 cm
Material: polycarbonate (PC)
IP Code: IP20
Shock resistance category: IK02
electrical power: 18 W

Primary nominal voltage: 220-240V V ~ 50/60Hz
Secondary power / secondary voltage: 220 mA
Dali capable: No
Inrush current level: 15 A
Inrush current duration: 300 µs
Weighted consumption: 18 kWh/1.000h
Service life: 30000 h
Energy efficiency class: LS_2535
Ambient temperature: 40 °C
Net weight: 0.405 kg
BIG WHITE Page: 431

Product information

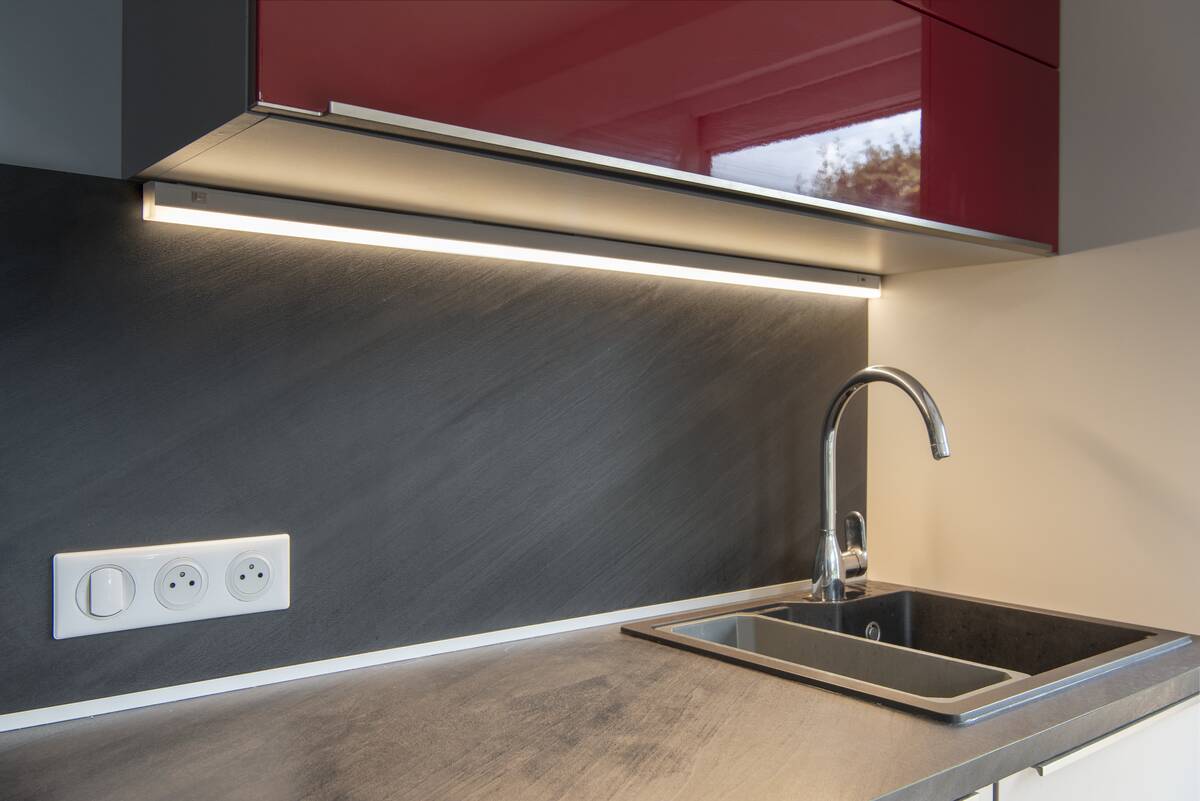

Several high-quality LEDs are combined in the BATTEN 120 light bar. The ceiling/wall-mounted light is in white and cuts a good figure everywhere. With the supply cable and the mains plug, BATTEN is also quickly and easily connected to a voltage of 230V. Experience BATTEN in action and convince yourself of a successful lighting experience.

Downloads

Product information

Datasheet (PDF)

Removal instructions (PDF)

Lichtverteilungskurve (JPG)

Maßzeichnung (JPG)

Documents

CE declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download Rolf Zip file (ZIP)
