QUAD FRAME 19

Width

RRP£103.00Prices for business customers excl. VAT

100+ in Stock

Art. no.: 1003468

Delivery information

Delivery time: 1–3 working days

Technical overview

100 °
30000 h
IP20

Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
Compatible with through-wiring: Through-wiring is possible with this product.
CCT switch: By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

Technical data

Product name: QUAD FRAME 19
EAN Number: 4024163236249
Colour: white
Luminous Flux: 580/640 lm
Colour temperature: 2700/3000 Kelvin
CRI: 90
Beam angle: 100 °
CCT switch: Yes
Width: 18.5 cm
Height: 15.5 cm
Material: Aluminium
IP Code: IP20
electrical power: 11 W
Primary nominal voltage: 220-240V V ~ 50/60Hz

Secondary power / secondary voltage: 500 mA
Dali capable: No
Inrush current level: 4.7 A
Inrush current duration: 30 µs
Weighted consumption: 11 kWh/1.000h
Service life: 30000 h
Energy efficiency class: LS_2470
Ambient temperature: 40 °C
Risk group: 0
Net weight: 0.668 kg
BIG WHITE Page: 365

Product information

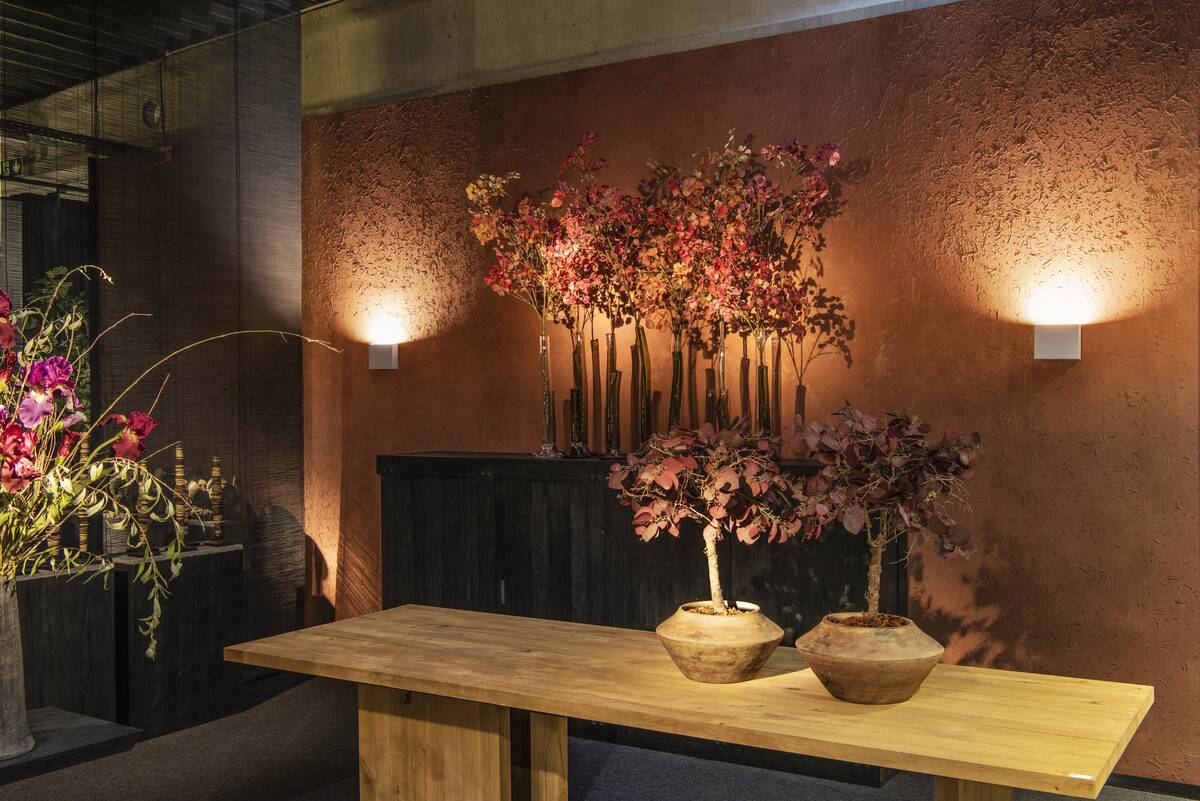

LED surface-mounted wall light QUAD FRAME 14. The invisibly installed LED emits its light indirectly onto the surface to be illuminated. This makes glare-free illumination of walkways and staircases possible, for example. The QUAD FRAME 14 recessed fitting is available in white colour version. The light colour can be switched between 2700 K and 3000 K during installation using the built-in CCT switch. This luminaire contains built-in LED lamps.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

Removal instructions (PDF)

Maßzeichnung (JPG)

Documents

CE declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download Rolf Zip file (ZIP)

Download ULD file (ULD)
