AINOS SQUARE SENSOR

Colour

RRP£176.00Price for trade customers only, excl. VAT & shipping

100+ in Stock

Art. no.: 1003452

Delivery information

Delivery time: 1–3 working days

Technical overview

120 °
30000 h
IP65
IK02

Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
IK impact resistance rating: The IK impact resistance rating is a measure of the resistance of the housing of electrical equipment to mechanical stress, especially impact stress.
CCT switch: By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.

Technical data

Product name: AINOS
EAN Number: 4024163236096
Colour: anthracite
Luminous Flux: 1300 lm
Colour temperature: 3000/4000 Kelvin
CRI: 80
Beam angle: 120 °
CCT switch: Yes
Length: 30 cm
Width: 30 cm
Height: 6.5 cm
Material: Aluminium
IP Code: IP65
Shock resistance category: IK02

electrical power: 18 W
Primary nominal voltage: 220-240V ~ 50/60Hz
Secondary power / secondary voltage: 500 mA
Dali capable: No
Weighted consumption: 18 kWh/1.000h
Service life: 30000 h
Energy efficiency class: LS_2289
Ambient temperature: 45 °C
Risk group: 1
Net weight: 1.912 kg
BIG WHITE Page: 859

Product information

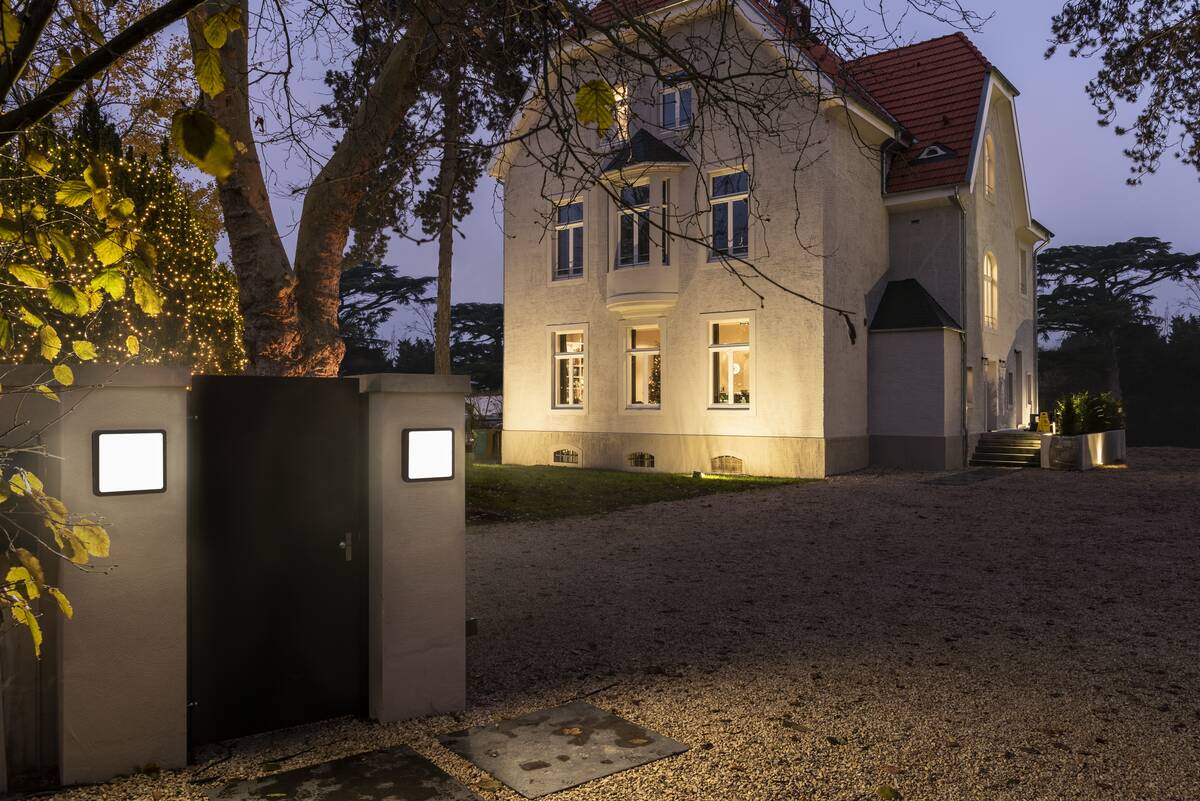

The AINOS Outdoor LED wall and ceiling surface-mounted luminaire is suitable for use in outdoor areas and is designed for wall or ceiling installation. It features a luminous flux of 1300 lumens and offers a switchable colour temperature ranging from 3000 to 4000 Kelvin. The housing is made of aluminium and polycarbonate, ensuring a robust construction. The luminaire is equipped with an integrated sensor and has an IP65 rating, protecting it against dust and jet water. Its impact resistance corresponds to the IK02 class. With a compact size of 30 x 30 x 6.5 cm, it is suitable for a wide range of outdoor applications.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

Removal instructions (PDF)

Assembly drawings (PDF)

Technical drawing (JPG)

Documents

CE declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download Rolf Zip file (ZIP)

Download ULD file (ULD)
