RRP£403.00Price for trade customers only, excl. VAT & shipping
100+ in Stock
Art. no.: 1002912
Delivery information
Delivery time: 1–3 working days
Technical overview
130 °
30000 h
IP20
300 cm
DALI dimming
This product is dimmable using a DALI dimmer.
130 °
Direct lighting - beam angle
This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
30000 h
Average lifespan in h
The average lifespan of a lightbulb or light source in hours.
IP20
IP protection rating
The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
300 cm
Pendant cable length
Pendant cable length in cm.
CCT switch
By using the CCT switch integrated in this product, the light colour can be configured at installation to 3000K or 4000K.
Technical data
Product name
ONE 80
EAN Number
4024163231060
Colour
white/white
Luminous Flux
1930/2140 lm
Colour temperature
3000/4000 Kelvin
CRI
90
Beam angle
130 °
CCT switch
Yes
Height
3 cm
Diameter
80 cm
Pendant length
300 cm
Material
Aluminium
IP Code
IP20
electrical power
32 W
Primary nominal voltage
220-240V ~ 50/60Hz
Secondary power / secondary voltage
800 mA
Dimmable
Yes
Dimming technology
DALI 2
Dali capable
Yes
Inrush current level
35 A
Inrush current duration
2 µs
Weighted consumption
32 kWh/1.000h
Service life
30000 h
Energy efficiency class
LS_2106
Ambient temperature
50 °C
Risk group
1
Net weight
2.185 kg
BIG WHITE Page
229
Product information

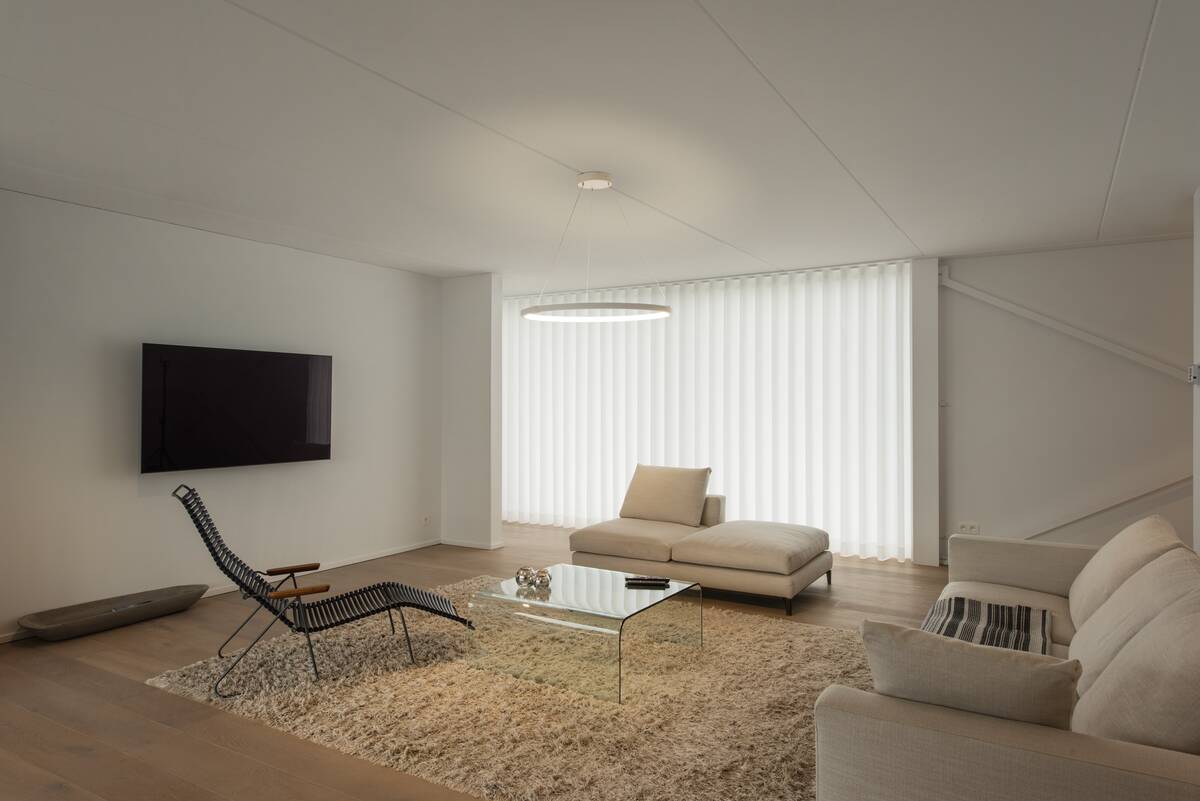

The ONE 80 DALI is an indoor LED pendant light suitable for use in interior spaces. It features a ROUND shape with a diameter of 80 cm and a product height of 3 cm, with a pendant length of up to 300 cm. The luminaire is equipped with a DALI 2 dimming function, allowing flexible light control. The housing is made of aluminium and steel, ensuring a robust construction. The light source provides a luminous flux of 1930 to 2140 lumens at colour temperatures of 3000 or 4000 Kelvin. The IP20 protection rating makes it suitable for protected indoor areas. The ONE 80 DALI is designed for professional use in various interior installations.
Downloads
Product information
Datasheet (PDF)
Manual (PDF)
Removal instructions (PDF)
Assembly drawings (PDF)
Technical drawing (JPG)
Documents
CE declaration (PDF)
REACH (PDF)
Tender data
Tender Text (TXT)
GAEB file (D81)
Lighting planning data
Download Rolf Zip file (ZIP)
Download ULD file (ULD)
3D Daten
Download 3DS file (3DS)
Download DWG file (DWG)
Download MTL file (MTL)
Download OBJ file (OBJ)
Download SKP file (SKP)
