This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
30000 h
Average lifespan in h
The average lifespan of a lightbulb or light source in hours.
IP20
IP protection rating
The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
Technical data
Product name
DIO FLEX PLATE
EAN Number
4024163226967
Colour
black
Luminous Flux
100 lm
Colour temperature
3000 Kelvin
CRI
80
Beam angle
45 °
CCT switch
No
Length
49.8 cm
Diameter
9 cm
Material
Aluminium
IP Code
IP20
electrical power
1,9 W
Primary nominal voltage
100-240V V ~ 50/60Hz
Secondary power / secondary voltage
350 mA
Dali capable
No
Weighted consumption
2 kWh/1.000h
Service life
30000 h
Energy efficiency class
LS_2292
Ambient temperature
45 °C
Net weight
0.514 kg
BIG WHITE Page
385
Product information

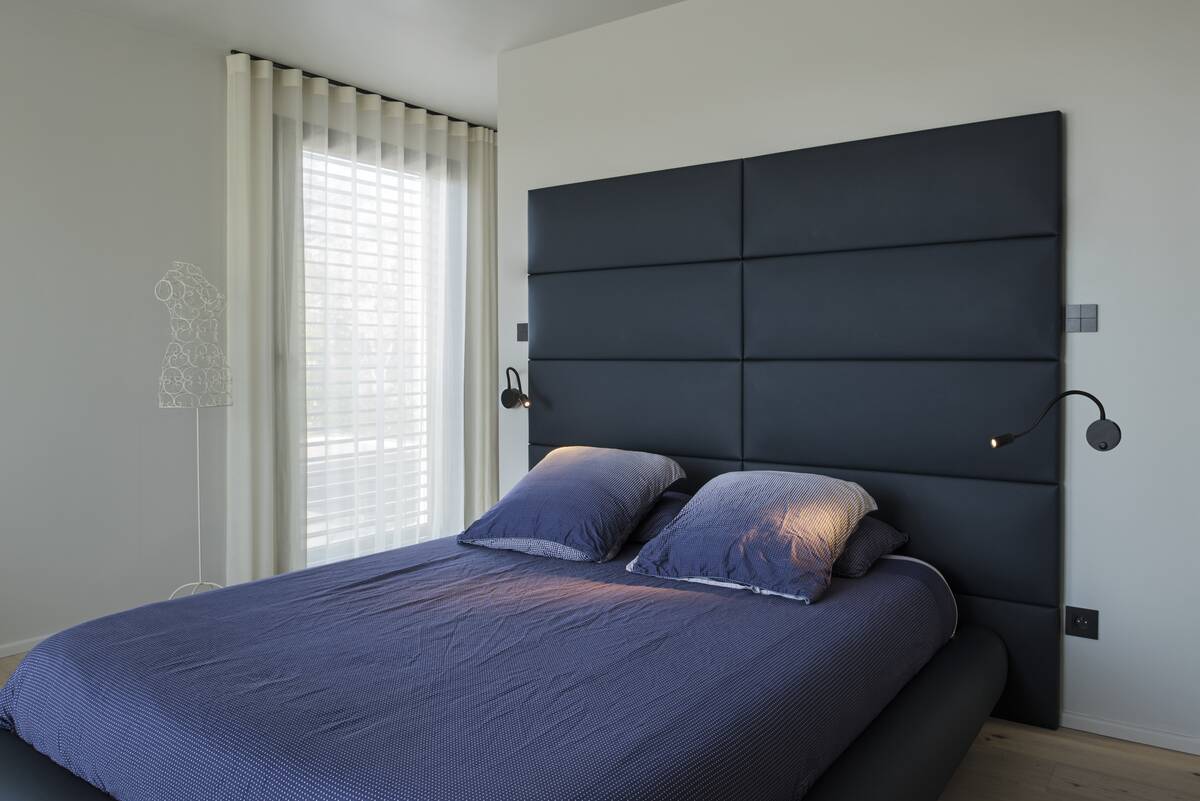

Adjustable 240V display fitting for wall mounting of the DIO FLEX PLATE series, whereby the canopy and lamp head are connected via a flexible arm. Because of the switch that is fitted, the individually adjustable luminaire is suitable for many applications. The luminaire is connected directly to the 230V mains supply. An LED version is available as an alternative.
