ANELA

Colour

buy-box.note.successor-available

Select the item now with matching

RRP£138.00Prices for business customers excl. VAT

50+ in Stock

Art. no.: 1000807

Optionally available

Delivery information

Delivery time: 1–3 working days

Technical overview

28 °
50000 h
IP20

Trailing edge phase dimmer: This product is dimmable using a trailing edge phase dimmer.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.

Technical data

Product name: ANELA
EAN Number: 4024163190992
Colour: black
Assembly: Surface
Luminous Flux: 240-820 lm
Colour temperature: 3000 Kelvin
CRI: 90
Beam angle: 28 °
CCT switch: No
Different light outlets: 1
Height: 18 cm
Diameter: 8.4 cm
Shape: round
Material: Aluminium
IP Code: IP20
Assembly details: Ceiling
electrical power: 10 W
Primary nominal voltage: 220-240V V ~ 50/60Hz

Secondary power / secondary voltage: 500 mA
Dimmable: Yes
Dimming technology: trailing edge
Dali capable: No
Inrush current level: 10 A
Inrush current duration: 40 µs
Number of lights on LS B16A: 98
Number of lights on LS C16A: 123
Weighted consumption: 10 kWh/1.000h
Service life: 50000 h
Energy efficiency class: LS_10143
Ambient temperature: 30 °C
Risk group: 1
Net weight: 0.557 kg
BIG WHITE Page: 155

Product information

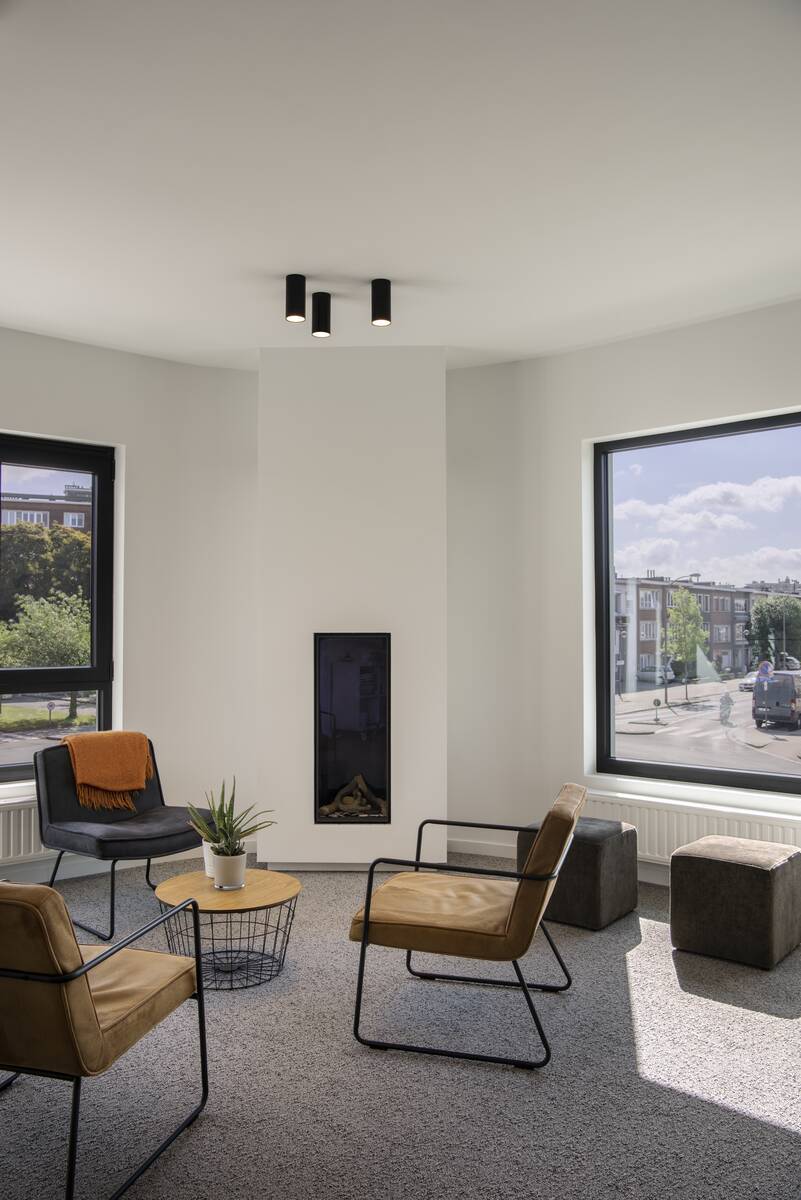

The ANELA ceiling mounted light is made from aluminium and has an integrated LED lamp. The set-back LED lamp reduces glare. ANELA is available in the housing colors black and white and with the separately available reflectors, which are available in several colors, different lumen output can be generated. The dimmable luminaire is ready for direct connection to the 230V mains power supply.

Downloads

Product information

Datasheet (PDF)

Manual (PDF)

Removal instructions (PDF)

Assembly drawings (PDF)

Maßzeichnung (JPG)

Documents

CE declaration (PDF)

REACH (PDF)

Tender data

Tender Text (TXT)

GAEB file (D81)

Lighting planning data

Download Rolf Zip file (ZIP)

Download ULD file (ULD)

Accessories & lamp recommendation

REFLECTOR
Item no.: 1000809
100+ in Stock
RRP17,00 £*
REFLECTOR
Item no.: 1000810
100+ in Stock
RRP17,00 £*
REFLECTOR
Item no.: 1000811
Sold out
RRP17,00 £*
REFLECTOR
Item no.: 1000812
Sold out
RRP17,00 £*

FIND A DIMMER. GOOD COMBINATION.

Please note the minimum load of the dimmers used.

Berker 2873
Niko 310-0190X
Jung 224 LED UDD
LK Fuga LED Dimmer 180 Touch
Merten MEG5134-0000
Eltako EUD 61 NPN-UC
Legrand PRO21 LED Dimmer 775659
